CGA6P3X8R1E475M250AD
ActiveTDK Corporation

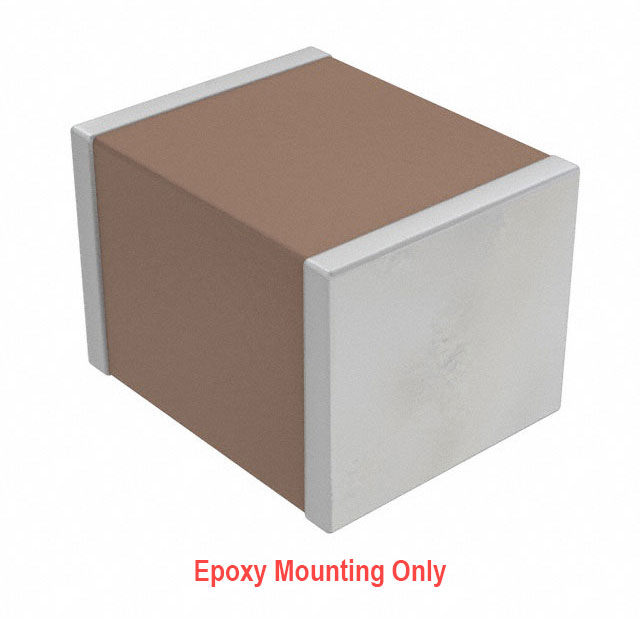

CAP CER 4.7UF 25V X8R 1210 EPOXY
CGA6P3X8R1E475M250AD
ActiveTDK Corporation
CAP CER 4.7UF 25V X8R 1210 EPOXY
Description
General part information
CGA6P3X8R1E475M250AD
4.7 µF ±20% 25V Ceramic Capacitor X8R 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CGA6P3X8R1E475M250AD |
|---|---|
| Applications | Automotive |
| Capacitance | 4.7 µF |
| Features | Epoxy Mountable, High Temperature |
| Mounting Type | Surface Mount, MLCC, Epoxy |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1210 (3225 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | X8R |
| Thickness (Max) | 0.11 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
