Crystals, Oscillators, Resonators

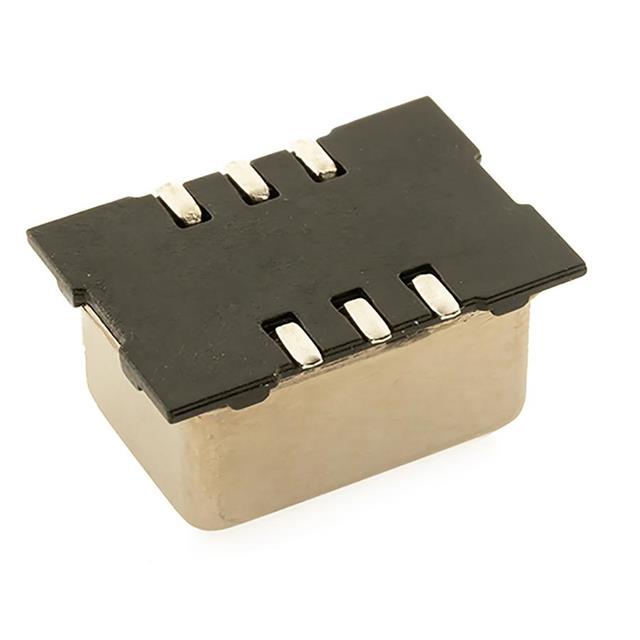

OX4115A-D3-0.5-19.200-3.3
ActiveRaltron Electronics
XTAL OSC OCXO 19.200MHZ 3.3V SMD
Crystals, Oscillators, Resonators
OX4115A-D3-0.5-19.200-3.3
ActiveRaltron Electronics
XTAL OSC OCXO 19.200MHZ 3.3V SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | OX4115A-D3-0.5-19.200-3.3 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 300 mA |
| Frequency | 19.2 MHz |
| Frequency Stability | 5 ppb |
| Height - Seated (Max) | 0.315 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.606 in |
| Size / Dimension Width | 0.417 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 99.89 | <1d |
| 10 | $ 86.87 | |||
| 30 | $ 85.00 | |||
CAD
3D models and CAD resources for this part
Description
General part information
OX4115A-D3-0.5-19.200-3.3
19.2 MHz OCXO CMOS Oscillator 3.3V 6-SMD, No Lead
