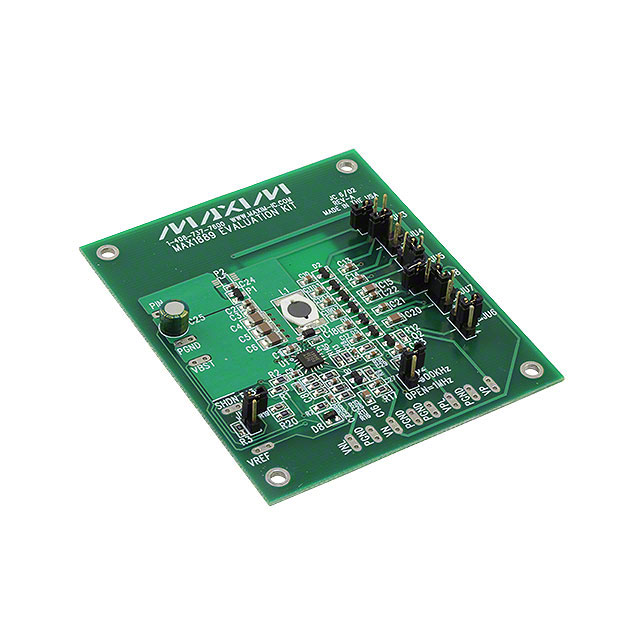

Specification	MAX1889EVKIT

Board Type	Fully Populated
Contents	Board
Current - Output (Value 1)	200 mA
Current - Output (Value 2)	10 mA
Current - Output (Value 3)	10 mA
Frequency - Switching	1 MHz
Main Purpose	LCD Supply, Special Purpose DC/DC
Non-Isolated Output Count	3
Output Type	Non-Isolated
Regulator Topology	Boost
Supplied Contents	Board(s)
Total Output Count	3
Utilized IC / Part	MAX1889
Voltage - Input (Maximum)	5.5 V
Voltage - Input (Minimum)	2.7 V
Voltage - Output	20 V, 9 V, -7 V

MAX188 Series

Part	Sampling Rate (Per Second)	Package Width	Package Name	Package Length	Ratio - ADC	Ratio - S/H	Reference Type	Configuration	Number of Bits	Voltage - Supply, Digital	Voltage - Supply, Digital (Nominal)	Voltage - Supply, Digital Tolerance	Voltage - Supply, Analog (Additional)	Voltage - Supply, Analog	Voltage - Supply, Analog (Nominal Positive)	Voltage - Supply, Analog (Nominal Negative)	Number of A/D Converters	Operating Temperature (Max)	Operating Temperature (Min)	Data Interface	Number of Inputs	Mounting Type	Architecture	Input Type	Type	Resolution (Bits)	Voltage Supply Source	Number of Channels	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Analog Devices Inc./Maxim Integrated MAX188CCAP	133 kHz	5.3 mm	20-SSOP	0.209 in	1	1	External	MUX-S/H-ADC	12 bits	5 V	5 V	5 V 5 %	5 V	5 V	5 V	-5 V	1 count	70 °C	0 °C	SPI	4 8	Surface Mount	SAR	Differential Single Ended
Analog Devices Inc./Maxim Integrated MAX188ACWP	133 kHz	7.5 mm	20-SOIC	0.295 in														70 °C	0 °C	Serial		Surface Mount			Data Acquisition	12 b	Dual ±	8
Analog Devices Inc./Maxim Integrated MAX188ACAP+	133 kHz	5.3 mm	20-SSOP	0.209 in														70 °C	0 °C	MICROWIRE™ QSPI™ Serial SPI™		Surface Mount			ADC Data Acquisition System (DAS)	12 b	Dual ±	8	5 V	-5 V
Analog Devices Inc./Maxim Integrated MAX188DEWP+T	133 kHz	7.5 mm	20-SOIC	0.295 in														85 °C	-40 °C	MICROWIRE™ QSPI™ Serial SPI™		Surface Mount			ADC Data Acquisition System (DAS)	12 b	Dual ±	8	5 V	-5 V
Analog Devices Inc./Maxim Integrated MAX188CCPP	133 kHz	7.62 mm	20-DIP 20-PDIP	0.3 in	1	1	External	MUX-S/H-ADC	12 bits	5 V	5 V	5 V 5 %	5 V	5 V	5 V	-5 V	1 count	70 °C	0 °C	SPI	4 8	Through Hole	SAR	Differential Single Ended
Analog Devices Inc./Maxim Integrated MAX188BEWP	133 kHz	7.5 mm	20-SOIC	0.295 in	1	1	External	MUX-S/H-ADC	12 bits	5 V	5 V	5 V 5 %	5 V	5 V	5 V	-5 V	1 count	85 °C	-40 °C	SPI	4 8	Surface Mount	SAR	Differential Single Ended
Analog Devices Inc./Maxim Integrated MAX188BCWP	133 kHz	7.5 mm	20-SOIC	0.295 in														70 °C	0 °C	Serial		Surface Mount			Data Acquisition	12 b	Dual ±	8
Analog Devices Inc./Maxim Integrated MAX188CCWP+
Analog Devices Inc./Maxim Integrated MAX188BCAP+	133 kHz	5.3 mm	20-SSOP	0.209 in														70 °C	0 °C	MICROWIRE™ QSPI™ Serial SPI™		Surface Mount			ADC Data Acquisition System (DAS)	12 b	Dual ±	8	5 V	-5 V
Analog Devices Inc./Maxim Integrated MAX188DCPP+	133 kHz	7.62 mm	20-DIP 20-PDIP	0.3 in														70 °C	0 °C	MICROWIRE™ QSPI™ Serial SPI™		Through Hole			ADC Data Acquisition System (DAS)	12 b	Dual ±	8	5 V	-5 V
