Technical Specifications
Parameters and characteristics for this part
| Specification | K181M10X7RH5UH5 |
|---|---|
| Applications | General Purpose |
| Capacitance | 180 pF |
| Height - Seated (Max) | 0.244 in |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.142 in |
| Size / Dimension Width | 0.091 in |
| Temperature Coefficient | X7R |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 20000 | $ 0.04 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information

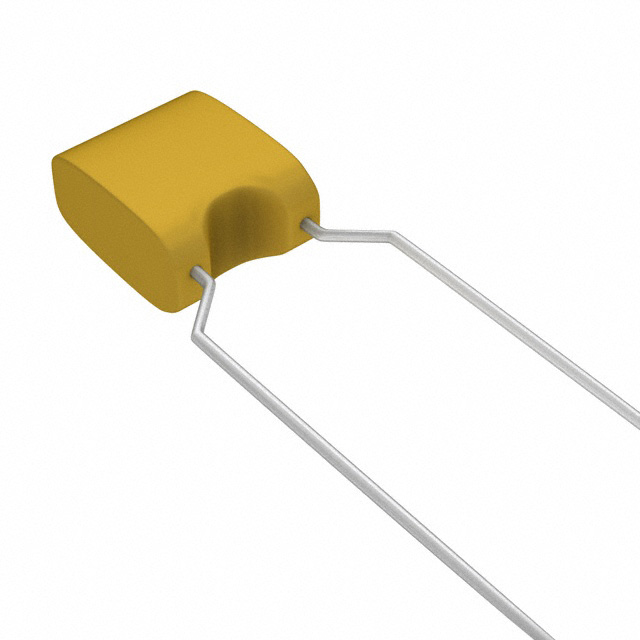

K181M10X7RH5UH5
180 pF ±20% 100V Ceramic Capacitor X7R Radial
Documents
Technical documentation and resources
