Description
General part information

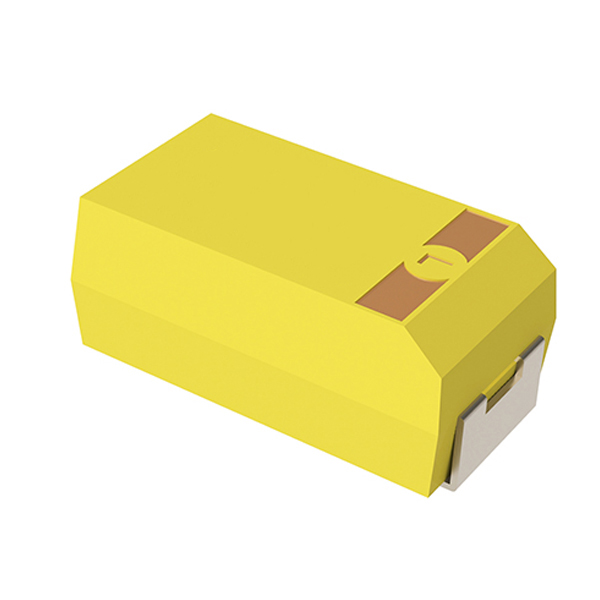

T489A334K035ATE11K
0.33 µF Molded Tantalum Capacitors 35 V 1206 (3216 Metric) 11.28Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T489A334K035ATE11K |
|---|---|
| Capacitance | 0.33 µF |
| ESR (Equivalent Series Resistance) | 11.28 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.071 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 35 V |
