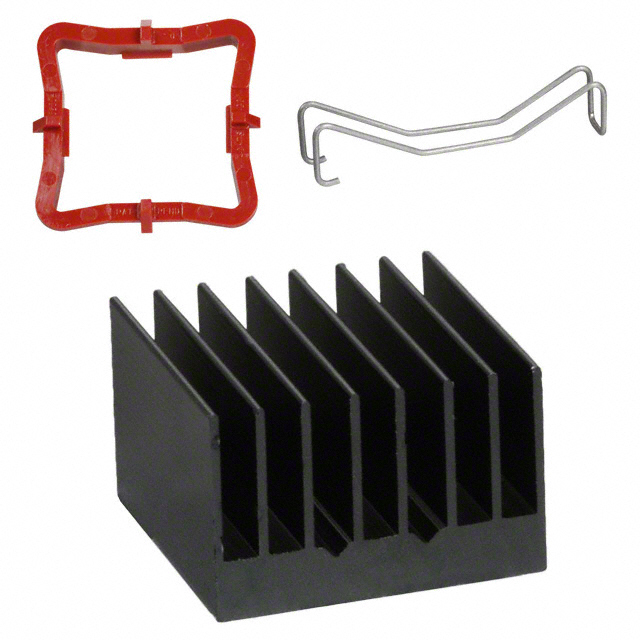

Specification	ATS-53230K-C1-R0

Attachment Method	Clip, Thermal Material
Fin Height	0.571 in
Length	0.9 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Fins
Thermal Resistance	8.8 °C/W
Type	Top Mount
Width	0.906 in

BGA Series

Heat Sinks maxiGRIP BGA Heat Sink w/Attachment, Straight Fin, Black, T766, 35x35x14.5mm

Part	Fin Height	Attachment Method	Shape	Material Finish	Type	Package Cooled	Material	Thermal Resistance	Width	Length
Advanced Thermal Solutions Inc. ATS-53210R-C1-R0	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	7.8 °C/W	0.827 in	0.827 in
Advanced Thermal Solutions Inc. ATS-53300K-C1-R0	0.571 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	6.9 °C/W	1.181 in	1.181 in
Advanced Thermal Solutions Inc. ATS-53375R-C1-R0	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	3.5 °C/W	1.476 in	1.476 in
Advanced Thermal Solutions Inc. ATS-53325K-C1-R0	0.571 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	5.9 °C/W	1.28 in	1.28 in
Advanced Thermal Solutions Inc. ATS-53425K-C1-R0	0.571 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	4.3 °C/W	1.673 in	1.673 in
Advanced Thermal Solutions Inc. ATS-53230D-C1-R0	0.374 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	16.8 °C/W	0.906 in	0.9 in
Advanced Thermal Solutions Inc. ATS-53330R-C1-R0	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	4.1 °C/W	1.299 in	1.299 "
Advanced Thermal Solutions Inc. ATS-53450K-C1-R0	0.571 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	4.1 °C/W	1.772 in	1.772 in
Advanced Thermal Solutions Inc. ATS-53400R-C1-R0	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	3.2 °C/W	1.575 in	1.575 in
Advanced Thermal Solutions Inc. ATS-53170R-C1-R0	0.768 in	Clip Thermal Material	Fins Square	Black Anodized	Top Mount	BGA	Aluminum	9.3 °C/W	0.669 in	0.669 in
