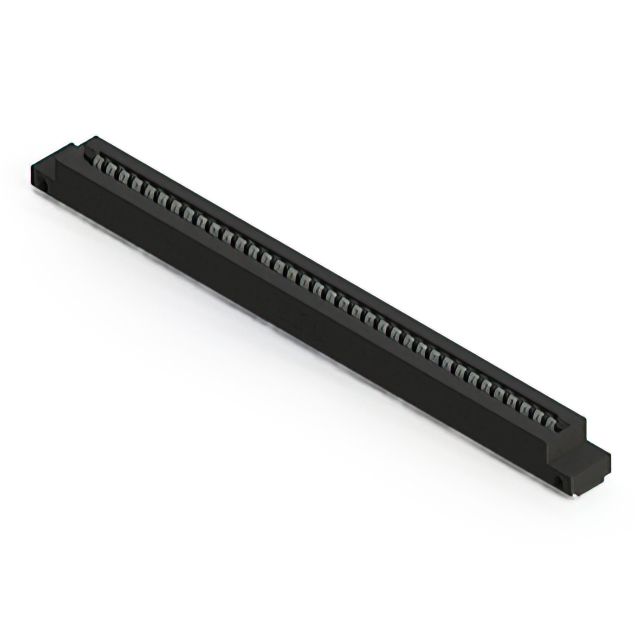

Specification	857-036-401-112

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole
Number of Positions	36, 72
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1 rows

857-036 Series

...

Part	Read Out	Gender	Mounting Type	Card Thickness (Min)	Card Thickness (Max)	Number of Positions	Pitch	Contact Finish	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Contact Type	Card Type	Termination	Color	Contact Finish Thickness	Number of Rows	Flange Feature Diameter	Flange Feature	Termination Rows	Material - Insulation	Features
EDAC Inc. 857-036-524-203	Dual	Female	Through Hole	0.054 in	0.07 in	18 36	0.156 in	Gold	125 °C	-40 °C	Copper Alloy	Semi Bellows	Dual Edge Non Specified	Solder	Black	10 Ąin	2	0.116 in	Floating Bobbin Flush Mount	2 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-036-420-207	Dual	Female	Through Hole	0.054 in	0.07 in	18 36	0.156 in	Tin	125 °C	-40 °C	Copper Alloy	Semi Bellows	Dual Edge Non Specified	Solder	Black		2		Flush Mount M3 Threaded Insert Top Opening	2 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-036-559-208	Single	Female	Right Angle Through Hole	0.054 in	0.07 in	18 36	0.156 in	Gold	125 °C	-40 °C	Copper Alloy	Semi Bellows	Dual Edge Non Specified	Solder	Black	10 Ąin	2		4-40 Flush Mount Threaded Insert Top Opening	2 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-036-453-103	Dual	Female	Right Angle Through Hole	0.054 in	0.07 in	36 72	0.156 in	Tin	125 °C	-40 °C	Copper Alloy	Semi Bellows	Dual Edge Non Specified	Solder	Black		2	0.116 in	Floating Bobbin Flush Mount	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-036-555-212	Dual	Female	Board Edge Straddle Mount	0.054 in	0.07 in	18 36	0.156 in	Gold	125 °C	-40 °C	Copper Alloy	Semi Bellows	Dual Edge Non Specified	Solder	Black	10 Ąin	2	0.128 in	Side Mount Opening Unthreaded	2 rows	Polyphenylene Sulfide PPS	Card Extender
EDAC Inc. 857-036-541-107	Dual	Female	Through Hole	0.054 in	0.07 in	36 72	0.156 in	Gold	125 °C	-40 °C	Copper Alloy	Semi Bellows	Dual Edge Non Specified	Wire Wrap	Black	10 Ąin	2		Flush Mount M3 Threaded Insert Top Opening	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-036-453-104	Dual	Female	Right Angle Through Hole	0.054 in	0.07 in	36 72	0.156 in	Tin	125 °C	-40 °C	Copper Alloy	Semi Bellows	Dual Edge Non Specified	Solder	Black		2	0.156 in	Flush Mount Top Opening Unthreaded	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-036-559-108	Single	Female	Right Angle Through Hole	0.054 in	0.07 in	36	0.156 in	Gold	125 °C	-40 °C	Copper Alloy	Semi Bellows	Non Specified Single Edge	Solder	Black	10 Ąin	1		4-40 Flush Mount Threaded Insert Top Opening	1 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-036-522-212	Dual	Female	Through Hole	0.054 in	0.07 in	18 36	0.156 in	Gold	125 °C	-40 °C	Copper Alloy	Semi Bellows	Dual Edge Non Specified	Solder	Black	10 Ąin	2	0.128 in	Side Mount Opening Unthreaded	2 rows	Polyphenylene Sulfide PPS
EDAC Inc. 857-036-531-101	Single	Female	Through Hole	0.054 in	0.07 in	36	0.156 in	Gold	125 °C	-40 °C	Copper Alloy	Semi Bellows	Non Specified Single Edge	Solder	Black	10 Ąin	1			1 rows	Polyphenylene Sulfide PPS
