392-027-559-103

Active

EDAC Inc.

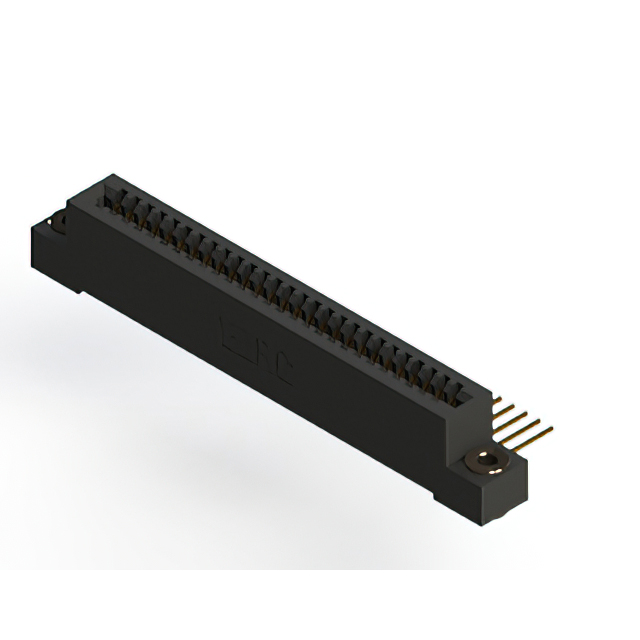

CARD EDGE CONNECTOR, 27 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

392-027-559-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, 27 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-027-559-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	27
Number of Positions/Bay/Row [custom]	27
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

392-027 Series

Part	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Card Type	Termination Rows	Read Out	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Number of Positions	Gender	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color	Termination	Number of Positions/Bay/Row [custom]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]
EDAC Inc. 392-027-541-102	Polyester Thermoplastic	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Wire Wrap	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-559-103	Polyester Thermoplastic	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Solder Wire Wrap	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-544-104	Polyester Thermoplastic	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Wire Wrap	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-558-107	Polyester Thermoplastic			Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Solder Wire Wrap	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-544-108	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Wire Wrap	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-540-101	Polyester Thermoplastic				Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Wire Wrap	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-558-101	Polyester Thermoplastic				Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Solder Wire Wrap	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-521-107	Polyester Thermoplastic			Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Solder	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-542-103	Polyester Thermoplastic	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Wire Wrap	27	Gold	-40 °C	105 ░C
EDAC Inc. 392-027-558-103	Polyester Thermoplastic	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Non Specified - Single Edge	1	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	27	Female	Copper Alloy	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in	Black	Solder Wire Wrap	27	Gold	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.86
LCSC	Piece	1	$ 19.37
		200	$ 7.49
		500	$ 7.23
		1000	$ 7.10
Newark	Each	1	$ 20.73
		100	$ 16.94
		250	$ 15.42
		500	$ 14.07
		1000	$ 11.64

Description

General part information

392-027 Series

27 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
