9855 0101000

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	9855 0101000

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2582
Shield Coverage	100 %, 58 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Ratings	Shield Material	Usage	Jacket (Insulation) Material	Features	Number of Conductors	Cable Type	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Shield Type	Length	Length	Conductor Strand
Belden Inc. 9855 0101000	UL Style 2582	Aluminum Copper Tinned	Computer	Poly-Vinyl Chloride (PVC)	Drain Wire	4	Multi-Pair	300 V	6.86 mm	0.27 in	58 % 100 %	Copper Tinned	-20 C	60 °C	Polyethylene (PE)	22 AWG	0.838 mm	0.033 in	Black	Braid Foil	1000 ft	304.8 m	Solid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.14

General part information

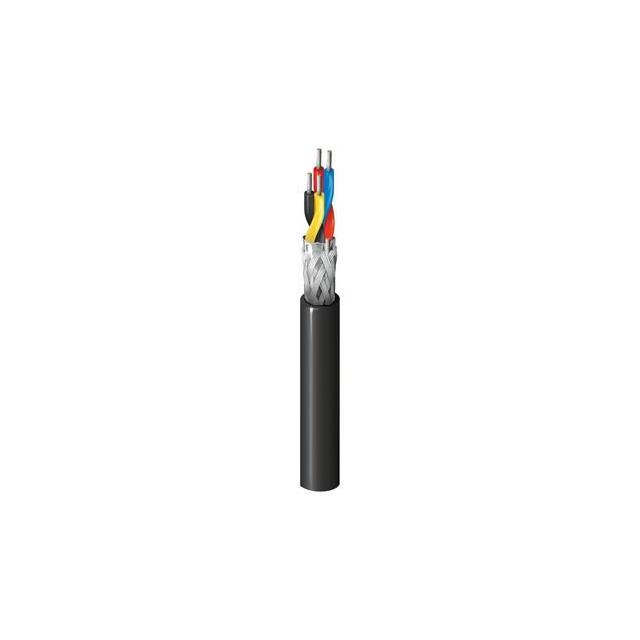

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 22 AWG Foil, Braid 1000.0' (304.8m)
