Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1340060125-000 | T1340 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H6B | H10B, H16B, H6B |
| Size / Dimension [x] | 60 mm | 60 - 93.5 mm |
| Size / Dimension [x] | 2.362 in | 2.362 - 3.681 in |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 72 mm | 72 - 76 mm |
| Size / Dimension [z] | 2.835 in | 2.835 - 2.992 in |
| Style | Top Entry | Top Entry |
| Thread Size | M25 | M25, PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.52 | |
| 10 | $ 5.68 | |||
| 25 | $ 5.53 | |||
| 50 | $ 5.39 | |||
| 100 | $ 5.27 | |||
T1340 Series
H10B-TGH-RO-M25
| Part | Ingress Protection | Connector Type | Housing Color | Lock Location | Style | Size | Housing Material | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1340100125-000 | IP65 - Dust Tight, Water Resistant | Hood | Gray | Locking Clip (1) on Base Bottom | Top Entry | H10B | Aluminum Alloy, Die Cast | Powder Coated | 125 °C | -40 °C | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | M25 |
TE Connectivity AMP Connectors T1340160121-000 | IP65 - Dust Tight, Water Resistant | Hood | Gray | Locking Clip (1) on Base Bottom | Top Entry | H16B | Aluminum Alloy, Die Cast | Powder Coated | 125 °C | -40 °C | 3.681 " | 93.5 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | PG21 |
TE Connectivity AMP Connectors T1340060125-000 | IP65 - Dust Tight, Water Resistant | Hood | Gray | Locking Clip (1) on Base Bottom | Top Entry | H6B | Aluminum Alloy, Die Cast | Powder Coated | 125 °C | -40 °C | 2.362 in | 60 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | M25 |
Description
General part information
T1340 Series

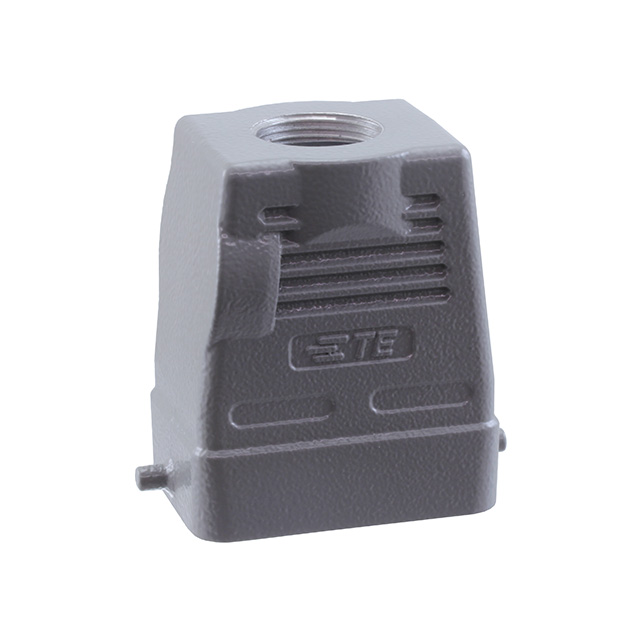

Hood Connector Top Entry M25 H6B IP65 - Dust Tight, Water Resistant
