Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-55270W-C1-R0 |
|---|---|
| Attachment Method | Thermal Tape, Adhesive (Included) |
| Fin Height [z] | 24.5 mm |
| Fin Height [z] | 0.965 in |
| Length | 1.063 in |
| Length | 27 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Shape | Square, Pin Fins |
| Thermal Resistance @ Forced Air Flow | 4.5 °C/W, 200 LFM |
| Type | Top Mount |
| Width [y] | 1.063 in |
| Width [y] | 27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

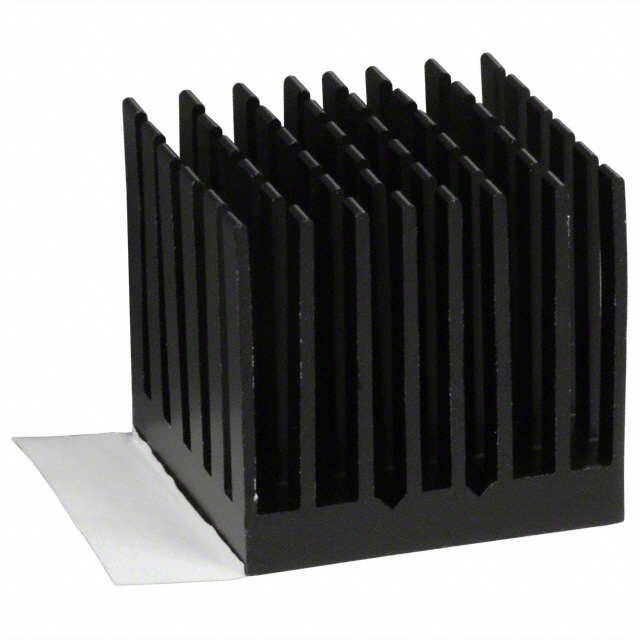

ATS-55270W-C1-R0
Heat Sink BGA Aluminum Top Mount
