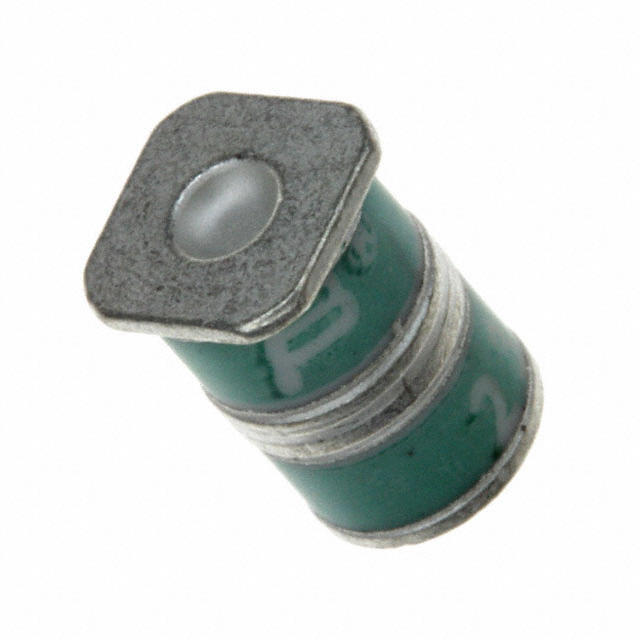

2038-60-SMLF

Active

Bourns Inc.

GDT 600V 5KA 3 POLE SMD

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 600V 5KA 3 POLE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	2038-60-SMLF

Fail Short	False
Impulse Discharge Current (8/20µs)	5000 A
Impulse Discharge Current (8/20µs)	5 kA
Mounting Type	Surface Mount
Number of Poles	3
Package / Case	3-SMD Cylinder Square End
Tolerance	25 %
Voltage - DC Spark Over (Nom)	600 V

Part	Number of Poles	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Voltage - DC Spark Over (Nom)	Tolerance	Package / Case	Mounting Type
Bourns Inc. 2038-15-SMLF	3	5000 A	5 kA	150 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-110-SM	3	5000 A	5 kA	1100 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-110-SM-RPLF	3	5000 A	5 kA	1100 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-80-SM-RPLF	3	5000 A	5 kA	800 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-42-SM	3	5000 A	5 kA	420 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-60-SM-RP	3	5000 A	5 kA	600 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-20-SM-RPLF	3	5000 A	5 kA	200 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-15-SM-RP2LF	3	5000 A	5 kA	150 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-60-SMLF	3	5000 A	5 kA	600 V	25 %	3-SMD Cylinder Square End	Surface Mount
Bourns Inc. 2038-47-SM-RP	3	5000 A	5 kA	470 V	25 %	3-SMD Cylinder Square End	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.05

General part information

Gas Discharge Tube 600 V 5000A (5kA) ±25% 3 Pole Surface Mount
