NHD-0108BZ-FSY-YBW-33V3
ActiveNewhaven Display Intl
LCD MOD 8DIG 8X1 TRANSFL YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
NHD-0108BZ-FSY-YBW-33V3
ActiveNewhaven Display Intl
LCD MOD 8DIG 8X1 TRANSFL YLW/GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-0108BZ-FSY-YBW-33V3 |
|---|---|
| Background Color | Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.4 mm |
| Character Size [z] | 7.1 mm |
| Controller Type | SPLC780D, ST7066U |
| Display Format [x] | 8 |
| Display Format [y] | 1 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.6 mm |
| Dot Size [y] | 0.8 mm |
| Interface | Parallel |
| Number of Characters | 8 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 53 mm |
| Outline L x W x H [y] | 24.2 mm |
| Outline L x W x H [z] | 11 mm |
| Text Color | Blue |
| Viewing Area [x] | 35 mm |
| Viewing Area [y] | 12.6 mm |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.96 | |
| 5 | $ 9.36 | |||
| 10 | $ 8.77 | |||
| 50 | $ 8.27 | |||
| 100 | $ 7.87 | |||
| 250 | $ 7.47 | |||
| 500 | $ 7.17 | |||
Description
General part information
NHD-0108BZ-FSY-YBW-33V3

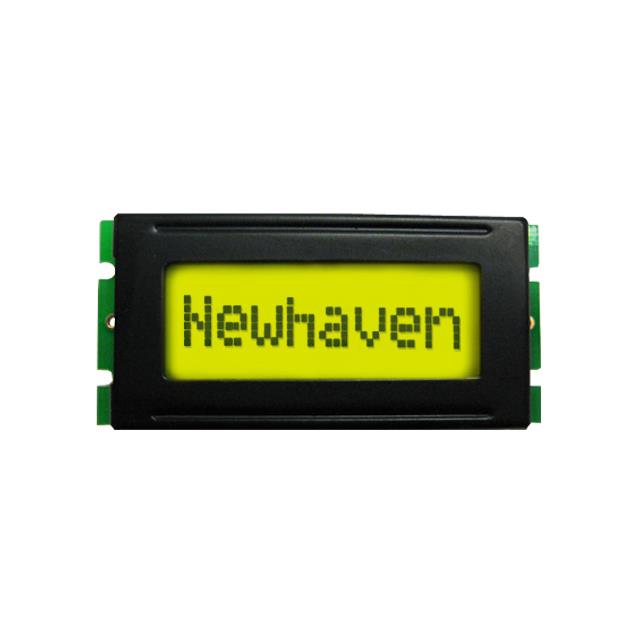

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 53.00mm x 24.20mm x 11.00mm
