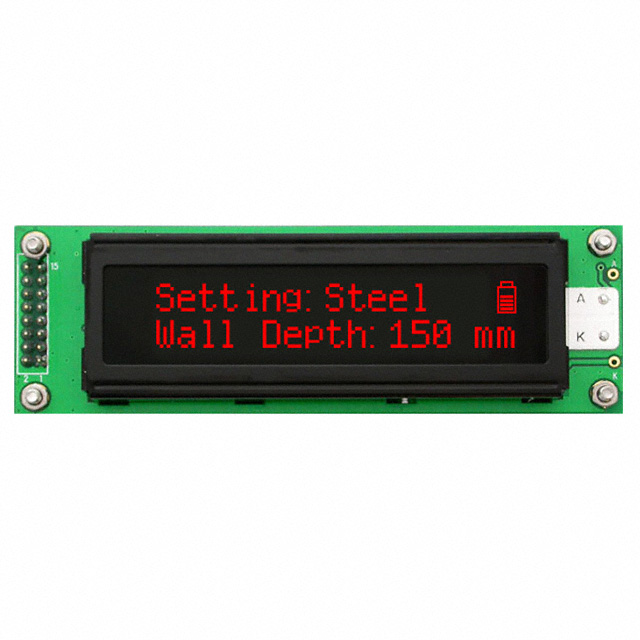

Specification	LK202-25-R-V

Background Color	Black
Backlight Color	Red
Backlight Type	LED
Character Height	5.55 mm
Character Height (Dots)	8 Dots
Character Width	3.2 mm
Character Width (Dots)	5 Dots
Display Columns	20
Display Mode	Transmissive
Display Rows	2
Display Type	LCD - Color
Dot Size Height	0.65 mm
Dot Size Width	0.6 mm
Interface	I2C, TTL, RS-232
Number of Characters	40 characters
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Outline Height	28.69 mm
Outline Length	116 mm
Outline Width	37 mm
Text Color	Red
Viewing Area Length	83 mm
Viewing Area Width	18.6 mm
Voltage - Supply (Maximum)	15 V
Voltage - Supply (Minimum)	9 VDC

LK202 Series

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Character Width	Character Height	Character Width (Dots)	Character Height (Dots)	Backlight Type	Backlight Color	Outline Height	Outline Length	Outline Width	Background Color	Number of Characters	Display Type	Display Rows	Display Columns	Operating Temperature (Min)	Operating Temperature (Max)	Interface	Viewing Area Width	Viewing Area Length	Text Color	Display Mode	Dot Size Width	Dot Size Height
Matrix Orbital LK202-25-USB-R	5.25 V	4.75 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED	Red	27.7 mm	116 mm	37 mm	Black	40 characters	LCD - Color	2	20	0 °C	50 °C	USB	18.6 mm	83 mm	Red	Transmissive	0.6 mm	0.65 mm
Matrix Orbital LK202-25-USB-E	5.25 V	4.75 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED	Green Yellow	27.7 mm	116 mm	37 mm	Green	40 characters	LCD - Color	2	20	-20 °C	70 °C	USB	18.6 mm	83 mm	Gray	Transmissive	0.6 mm	0.65 mm
Matrix Orbital LK202-25-R	5.25 V	4.75 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED	Red	28.69 mm	116 mm	37 mm	Black	40 characters	LCD - Color	2	20	0 °C	50 °C	I2C RS-232 TTL	11.5 mm	73.5 mm	Red	Transmissive	0.6 mm	0.65 mm
Matrix Orbital LK202-25-V	15 V	9 VDC	3.2 mm	5.55 mm	5 Dots	8 Dots	LED	Green Yellow	28.69 mm	116 mm	37 mm	Green	40 characters	LCD - Color	2	20	0 °C	50 °C	I2C RS-232 TTL	18.6 mm	83 mm	Gray	Transmissive	0.6 mm	0.65 mm
Matrix Orbital LK202-25-WB-V-E	15 V	9 VDC	3.2 mm	5.55 mm	5 Dots	8 Dots			29 mm	116 mm	37 mm	Blue	40 characters	LCD - Monochrome	2	20	-20 °C	70 °C	I2C RS-232 TTL	11.5 mm	73.5 mm	White		0.6 mm	0.65 mm
Matrix Orbital LK202-25-IY-V-E	15 V	9 VDC	3.2 mm	5.55 mm	5 Dots	8 Dots			29 mm	116 mm	37 mm	Black	40 characters	LCD - Monochrome	2	20	-20 °C	70 °C	I2C RS-232 TTL	11.5 mm	73.5 mm	Yellow		0.6 mm	0.65 mm
Matrix Orbital LK202-25-FA-V	15 V	9 VDC	3.2 mm	5.55 mm	5 Dots	8 Dots			29 mm	116 mm	37 mm	Black	40 characters	FFSTN - Double Film Super-Twisted Nematic	2	20	0 °C	50 °C	I2C RS-232 TTL	11.5 mm	73.5 mm	Amber		0.6 mm	0.65 mm
Matrix Orbital LK202-25-GW	5.25 V	4.75 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED	White	28.69 mm	116 mm	37 mm	White	40 characters	LCD - Color	2	20	0 °C	50 °C	I2C RS-232 TTL	11.5 mm	73.5 mm	Gray	Transmissive	0.6 mm	0.65 mm
Matrix Orbital LK202-25-USB-R-E	5.25 V	4.75 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED	Red	27.7 mm	116 mm	37 mm	Black	40 characters	LCD - Color	2	20	-20 °C	70 °C	USB	18.6 mm	83 mm	Red	Transmissive	0.6 mm	0.65 mm
Matrix Orbital LK202-25-USB-GW-E	5.25 V	4.75 V	3.2 mm	5.55 mm	5 Dots	8 Dots	LED	White	27.7 mm	116 mm	37 mm	White	40 characters	LCD - Color	2	20	-20 °C	70 °C	USB	18.6 mm	83 mm	Gray	Transmissive	0.6 mm	0.65 mm
