280-585
ActiveWAGO Corporation

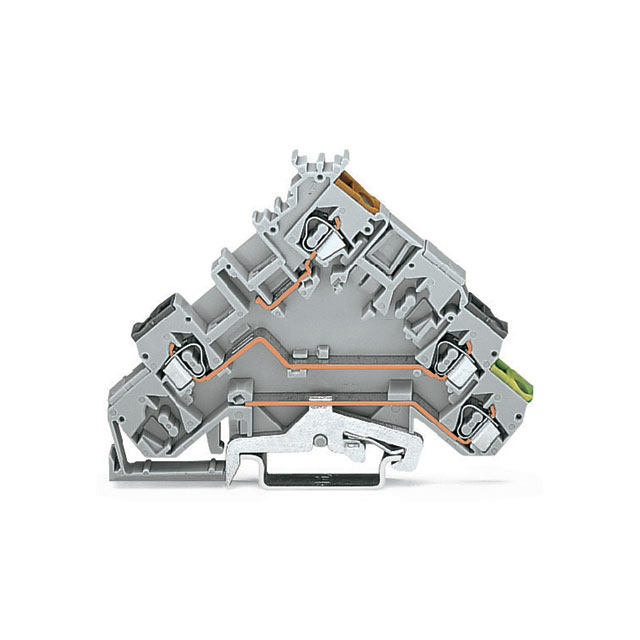

2-CONDUCTOR ACTUATOR TERMINAL BLOCK
280-585
ActiveWAGO Corporation
2-CONDUCTOR ACTUATOR TERMINAL BLOCK
Description
General part information
280-585
Terminal Block Connector 4 Position Feed Through, Isolated (2) Gray 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 280-585 |
|---|---|
| Color | Gray |
| Current - IEC | 20 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 3 |
| Number of Positions | 4 |
| Stripping Length (Max) | 9 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through, Isolated, Isolated (2), Feed Through |
| Type (Count) | 2 |
| Voltage - IEC | 400 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
