325011-02-0
ActiveCurtis Industries

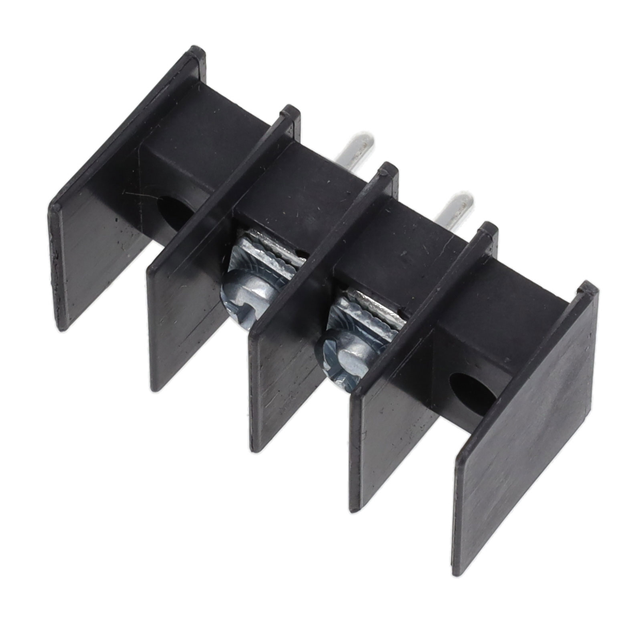

CONN BARRIER STRIP 2CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325011-02-0
ActiveCurtis Industries
CONN BARRIER STRIP 2CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325011-02-0 | 325011 Series |
|---|---|---|
| - | - | |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 2 | 2 - 26 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 2 | 2 - 26 |
| Number of Wire Entries | - | 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.32 | |
| 10 | $ 2.37 | |||
| 30 | $ 2.01 | |||
| 50 | $ 1.88 | |||
| 100 | $ 1.72 | |||
| 250 | $ 1.56 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.39 | |||
| 5000 | $ 1.27 | |||
325011 Series
CONN BARRIER STRP 18CIRC 0.325"
| Part | Pitch [x] | Pitch [x] | Material Flammability Rating | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Material - Insulation | Terminal Block Type | Features | Number of Wire Entries | Barrier Type | Top Termination | Number of Circuits | Number of Rows | Current Rating (Amps) | Voltage Rating | Operating Temperature | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325011-18-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 18 | 2 Wall (Dual) | Screws | 18 | 1 | 15 A | 300 VDC | 105 C | |
Curtis Industries 325011-12-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 12 | 2 Wall (Dual) | Screws | 12 | 1 | 15 A | 300 VDC | 105 C | |
Curtis Industries 325011-02-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 2 | 2 Wall (Dual) | Screws | 2 | 1 | 15 A | 300 VDC | 105 C | |
Curtis Industries 325011-26-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 26 | 2 Wall (Dual) | Screws | 26 | 1 | 15 A | 300 VDC | 105 C | |
Curtis Industries 325011-10-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 10 | 2 Wall (Dual) | Screws | 10 | 1 | 15 A | 300 VDC | 105 C | |
Curtis Industries 325011-20-0 | |||||||||||||||||||
Curtis Industries 325011-25-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 25 | 2 Wall (Dual) | Screws | 25 | 1 | 15 A | 300 VDC | 105 C | |
Curtis Industries 325011-04-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 4 | 2 Wall (Dual) | Screws | 4 | 1 | 15 A | 300 VDC | 105 C | |
Curtis Industries 325011-23-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 2 Wall (Dual) | Screws | 23 | 1 | 15 A | 300 VDC | 105 C | 23 | |
Curtis Industries 325011-24-0 | 8.26 mm | 0.325 in | UL94 V-0 | PC Pin | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Polypropylene (PP) | Barrier Block | Flange | 2 Wall (Dual) | Screws | 24 | 1 | 15 A | 300 VDC | 105 C |
Description
General part information
325011 Series
2 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
