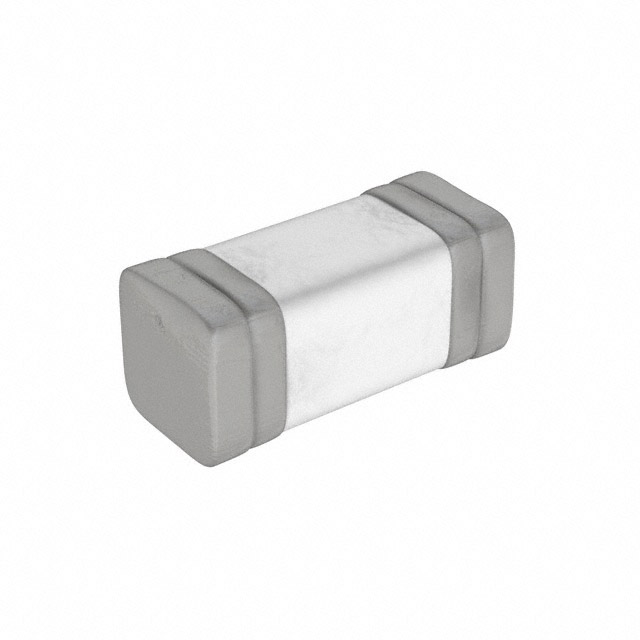

TR2/6125FF4-R
ObsoleteEaton - Electronics Division
FUSE BRD MNT 125VAC/72VDC 2410
TR2/6125FF4-R
ObsoleteEaton - Electronics Division
FUSE BRD MNT 125VAC/72VDC 2410
Description
General part information
TR2/6125FF4-R
4 A 125 V AC 72 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2410 (6125 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR2/6125FF4-R |
|---|---|
| Approval Agency | cULus |
| Breaking Capacity | 50 A |
| Current Rating | 4 A |
| DC Cold Resistance | 0.026 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 7.4 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2410 (6125 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.107 in |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.107 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 72 V |
