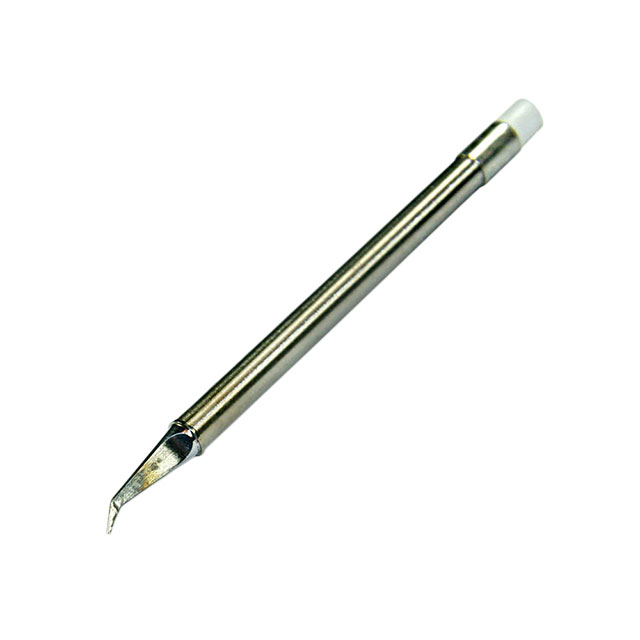

T31-031601

Active

American Hakko Products, Inc.

TIP,BENT,R0.25MM/30 X 15.3MM,IH,

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

TIP,BENT,R0.25MM/30 X 15.3MM,IH,

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 43.44

General part information

TIP,BENT,R0.25MM/30 X 15.3MM,IH,

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	T31-031601	T31-0 Series

Diameter	-	0.2 mm
Diameter	-	0.008 in
Diameter	-	0.25 mm
Diameter	-	0.01 in
For Use With/Related Products	FX-100, FX1001	FX-100, FX1001
Height	-	0.5 - 3.05 mm
Height	-	0.02 - 0.12 "
Length	-	0.24 - 0.69 in
Length	-	7.87 - 17.53 mm
Length	-	0.31 - 0.59 "
Length	-	0.559 - 14.22 in
Length	-	14.2 mm
Temperature Range	350 °C	350 - 896 °C
Temperature Range	-	450 - 480 °C
Tip Shape	Bent 30°	Bevel 60°, Bent 30°, Chisel, Conical, Knife 45°, Chisel, Bent 30°
Tip Type	Soldering	Soldering
Width	-	0.03 - 0.09 in
Width	-	0.76 - 2.28 mm
Width	-	1.02 - 4.83 mm
Width [x]	2 mm	1.52 - 5.08 mm
Width [x]	0.079 in	0.06 - 0.2 in

TIP,BEVEL,2.8MM/60 X 17.6MM,IH,3

Part	Width [x]	Width [x]	Tip Type	Temperature Range	Length [x]	Length	Height [z]	Height [z]	For Use With/Related Products	Tip Shape	Diameter [diameter]	Diameter [diameter]	Width [y]	Width [y]	Temperature Range	Length	Length [x]	Length [x]	Width
American Hakko Products, Inc. T31-03BC28	2.79 mm	0.11 in	Soldering	350 °C	0.69 in	17.53 mm	3.05 mm	0.12 "	FX-100, FX1001	Bevel 60°
American Hakko Products, Inc. T31-02J02			Soldering	400 °C					FX-100, FX1001	Bent 30°	0.2 mm	0.008 in
American Hakko Products, Inc. T31-01D08			Soldering	842 °F		8.9 mm	0.5 mm	0.02 in	FX-100, FX1001	Chisel			0.03 in	0.76 mm	450 °C	0.35 "
American Hakko Products, Inc. T31-01BC1			Soldering	842 °F			1.28 mm	0.05 "	FX-100, FX1001	Bevel 60°			0.04 in		450 °C		0.559 in	14.2 mm	1.02 mm
American Hakko Products, Inc. T31-03D52	5.08 mm	0.2 in	Soldering	350 °C		7.87 mm	0.76 mm	0.03 in	FX-100, FX1001	Chisel						0.31 in
American Hakko Products, Inc. T31-02SBL			Soldering	400 °C	0.54 in				FX-100, FX1001	Conical	0.2 mm	0.008 in					13.72 mm
American Hakko Products, Inc. T31-03D16	1.52 mm	0.06 in	Soldering	350 °C		9.91 mm	0.5 mm	0.02 in	FX-100, FX1001	Chisel						0.39 "
American Hakko Products, Inc. T31-03JL02			Soldering	350 °C					FX-100, FX1001	Bent 30°	0.2 mm	0.008 in
American Hakko Products, Inc. T31-03KU		0.19 in	Soldering	350 °C		14.99 mm	2.29 mm	0.09 in	FX-100, FX1001	Knife 45°						0.59 in			4.83 mm
American Hakko Products, Inc. T31-02D52	5.08 mm	0.2 in	Soldering	400 °C		7.87 mm	0.76 mm	0.03 in	FX-100, FX1001	Chisel						0.31 in
