OCP-PCT124/A-TR

Active

Lumex Opto/Components Inc.

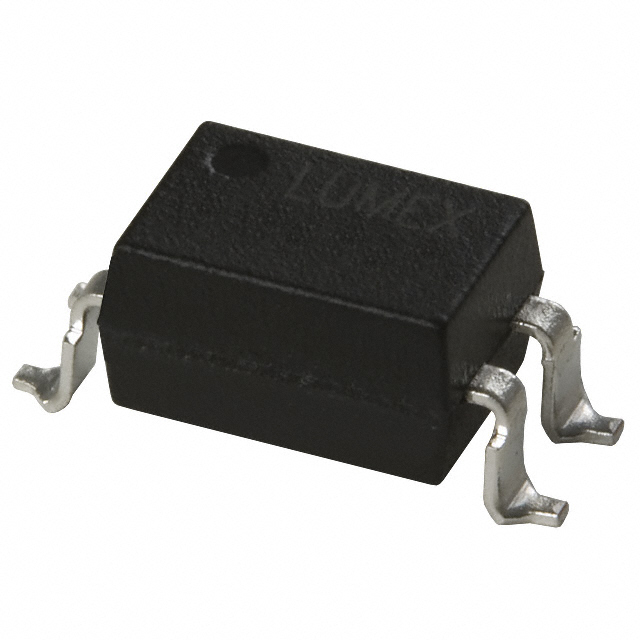

OPTOISOLATR 5KV TRANSISTOR 4-SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OPTOISOLATR 5KV TRANSISTOR 4-SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OCP-PCT124/A-TR	OCP-PCT124 Series

Current - DC Forward (If) (Max)	50 mA	50 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Max)	600 %	600 %
Current Transfer Ratio (Min) [Min]	60 %	60 %
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	4-SMD, Gull Wing	4-DIP (0.300", 7.62mm), 4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	5 µs	5 µs
Rise / Fall Time (Typ) [custom]	4 µs	4 µs
Supplier Device Package	4-SMD	4-DIP, 4-SMD
Vce Saturation (Max) [Max]	300 mV	300 mV
Voltage - Output (Max) [Max]	60 V	60 V

OPTOISOLATR 5KV TRANSISTOR 4-DIP

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Output Type	Number of Channels	Vce Saturation (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Max)	Current - DC Forward (If) (Max)	Current Transfer Ratio (Min) [Min]	Package / Case	Voltage - Output (Max) [Max]	Current - Output / Channel
Lumex Opto/Components Inc. OCP-PCT124/A	5 µs	4 µs	4-DIP	1.81 mOhm	1	300 mV	Through Hole	100 °C	-30 ░C	600 %	50 mA	60 %	4-DIP (0.300", 7.62mm)	60 V	50 mA
Lumex Opto/Components Inc. OCP-PCT124/A-TR	5 µs	4 µs	4-SMD	1.81 mOhm	1	300 mV	Surface Mount	100 °C	-30 ░C	600 %	50 mA	60 %	4-SMD, Gull Wing	60 V	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
