ActiveTE Connectivity AMP Connectors

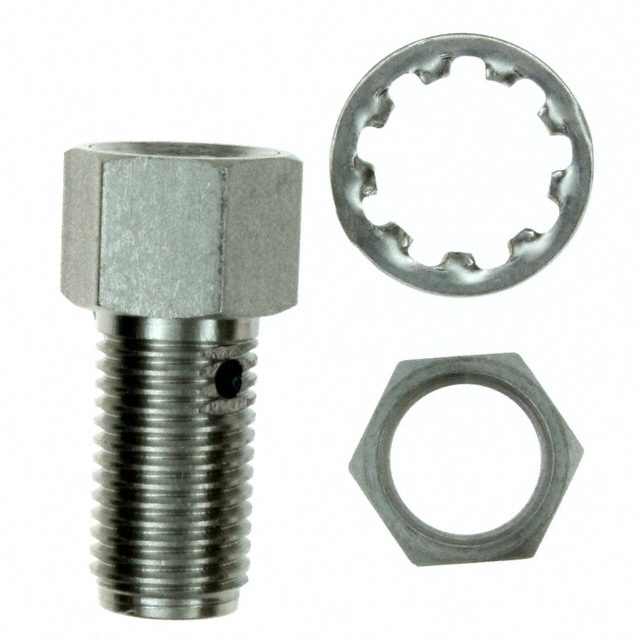

CONN ADAPT SMA JACK TO OSP JACK
Deep-Dive with AI
Search across all available documentation for this part.
1059733-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA JACK TO OSP JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1059733-1 | 1059 Series |
|---|---|---|
| Adapter Series | SMA to OSP | OSM to OSSP, OSM to OSP, SMA to OSP, OSP to 7mm |
| Adapter Type | Jack to Jack | Jack to Jack |
| Body Finish | - | Gold |
| Body Material | Stainless Steel | Stainless Steel, Brass |
| Cable Group | - | RG-405 (.085" Semi Rigid), RD-316, RG-55 |
| Cable Group | - | 142 - 400 |
| Center Contact Material | Beryllium Copper | Beryllium Copper, Brass |
| Center Contact Plating | Gold | Gold |
| Center Gender | Female to Female | Female to Female, Male to Non-Gendered |
| Connector Style | - | Mini, OSP, Subminiature, OSSP, SMA |
| Connector Type | - | Female Socket, Jack, Male Pin, Plug, Receptacle |
| Contact Termination | - | Solder, Compression |
| Conversion Type | Between Series | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack | Female Socket, SMA Jack, OSP Plug, Male Pin |
| Convert To (Adapter End) | OSP Jack, Female Socket | Female Socket, OSSP Jack, OSP Jack, Non-Gendered |
| Convert To (Adapter End) | - | 7 mm |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On | Snap-On, Threaded |
| Features | - | Extended Insulation, Field Replaceable, For Hermetically Sealed Pin, EMI/RFI Gasket |
| Frequency - Max | - | 18 - 6000 GHz |
| Housing Color | - | Silver, Gold |
| Impedance | - | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher | 1 Nut, 1 Connector, 1 Lockwasher, 1 Gasket, 1 Heat Shrink, 2 pcs - 1 Connector |
| Mating Cycles | - | 500 - 5000 |
| Mounting Feature | Bulkhead | Bulkhead - Front Side Nut, Flange, Bulkhead |
| Mounting Type | - | Free Hanging (In-Line), Panel Mount, Snap-In, Panel Mount, Threaded, Through Hole, Right Angle |
| Number of Ports | - | 1 |
| Operating Temperature | - | 105 - 165 °C |
| Operating Temperature | - | -65 - -40 ░C |
| Shield Termination | - | Solder, Crimp, Screw |
| Style | Straight | Straight |
| Voltage Rating | - | 250 - 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1059 Series
CONN MINI OSP JACK STR 50 OHM
| Part | Dielectric Material | Number of Ports | Body Material | Fastening Type | Mating Cycles | Connector Type | Center Contact Material | Connector Style | Impedance | Center Contact Plating | Housing Color | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination | Mounting Feature | Cable Group | Frequency - Max [Max] | Mounting Type | Adapter Series | Conversion Type | Adapter Type | Convert To (Adapter End) | Style | Convert From (Adapter End) | Center Gender | Voltage Rating | Body Finish | Contact Termination | Features | Convert To (Adapter End) | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1059506-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Jack | Beryllium Copper | Mini, OSP | 50 Ohms | Gold | Silver | 1 Connector, 1 Lockwasher, 1 Nut | 125 °C | -65 ░C | Solder | Bulkhead - Front Side Nut | RG-405 (.085" Semi Rigid) | 22 GHz | ||||||||||||||
TE Connectivity AMP Connectors 1059928-1 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Snap-On, Threaded | Beryllium Copper | 50 Ohms | Gold | 125 °C | -65 ░C | 18 GHz | Free Hanging (In-Line) | OSM to OSSP | Between Series | Jack to Jack | Female Socket, OSSP Jack | Straight | Female Socket, SMA Jack | Female to Female | |||||||||||||||
TE Connectivity AMP Connectors 1059378-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Male Pin, Plug | Beryllium Copper | Mini, OSP | 50 Ohms | Gold | Gold | 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut | 125 °C | -65 ░C | Solder | Bulkhead - Front Side Nut | RG-405 (.085" Semi Rigid) | 18 GHz | 335 V | Gold | ||||||||||||
TE Connectivity AMP Connectors 1059724-1 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Snap-On, Threaded | Beryllium Copper | 50 Ohms | Gold | 165 °C | -65 ░C | 18 GHz | Panel Mount, Snap-In | OSM to OSP | Between Series | Jack to Jack | Female Socket, OSP Jack | Straight | Female Socket, SMA Jack | Female to Female | |||||||||||||||
TE Connectivity AMP Connectors 1059505-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Jack | Beryllium Copper | Mini, OSP | 50 Ohms | Gold | Silver | 1 Connector, 1 Lockwasher, 1 Nut | 125 °C | -65 ░C | Solder | Bulkhead - Front Side Nut | 22 GHz | 335 V | ||||||||||||||
TE Connectivity AMP Connectors 1059596-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Receptacle | Beryllium Copper | OSP | 50 Ohms | Gold | Silver | 125 °C | -65 ░C | Solder | Flange | 18 GHz | 500 V | Solder | Extended Insulation | |||||||||||||
TE Connectivity AMP Connectors 1059733-1 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Snap-On, Threaded | Beryllium Copper | Gold | 1 Connector, 1 Lockwasher, 1 Nut | Bulkhead | SMA to OSP | Between Series | Jack to Jack | Female Socket, OSP Jack | Straight | Female Socket, SMA Jack | Female to Female | ||||||||||||||||||
TE Connectivity AMP Connectors 1059713-1 | Stainless Steel | Snap-On, Threaded | Brass | Gold | 18 GHz | Free Hanging (In-Line) | OSP to 7mm | Between Series | Non-Gendered | Straight | OSP Plug, Male Pin | Male to Non-Gendered | 7 mm | |||||||||||||||||||
TE Connectivity AMP Connectors 1059888-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Jack | Beryllium Copper | OSSP, Subminiature | 50 Ohms | Gold | Silver | 105 ░C | -65 ░C | Crimp | Flange | RD-316 | 18 GHz | 250 VDC | Solder | |||||||||||||
TE Connectivity AMP Connectors 1059499-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Jack | Beryllium Copper | OSP | 50 Ohms | Gold | Silver | 1 Connector, 1 Lockwasher, 1 Nut | 125 °C | -65 ░C | Solder | Bulkhead - Front Side Nut | RG-405 (.085" Semi Rigid) | 22 GHz | 335 V | Solder | ||||||||||||
TE Connectivity AMP Connectors 1059632-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Male Pin, Receptacle | Beryllium Copper | OSP | 50 Ohms | Gold | Silver | 1 Connector, 1 Gasket | 125 °C | -65 ░C | Solder | 18 GHz | Panel Mount, Threaded | 375 V | Solder | |||||||||||||
TE Connectivity AMP Connectors 1059412-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Jack | Beryllium Copper | Mini, OSP | 50 Ohms | Gold | Gold | 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut | 125 °C | -65 ░C | Solder | Bulkhead - Front Side Nut | RG-405 (.085" Semi Rigid) | 22 GHz | Gold | |||||||||||||
TE Connectivity AMP Connectors 1059540-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Jack | Beryllium Copper | Mini, OSP | 50 Ohms | Gold | Silver | 1 Heat Shrink, 2 pcs - 1 Connector | 125 °C | -65 ░C | Crimp | Flange | RG-55 | 18 GHz | 335 V | Solder | 142, 223, 400 | |||||||||||
TE Connectivity AMP Connectors 1059456-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Jack | Beryllium Copper | Mini, OSP | 50 Ohms | Gold | Silver | 125 °C | -65 ░C | Solder | Flange | RG-405 (.085" Semi Rigid) | 22 GHz | 450 V | ||||||||||||||
TE Connectivity AMP Connectors 1059731-1 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Snap-On, Threaded | Beryllium Copper | 50 Ohms | Gold | 165 °C | -65 ░C | Flange | 18 GHz | OSM to OSP | Between Series | Jack to Jack | Female Socket, OSP Jack | Straight | Female Socket, SMA Jack | Female to Female | |||||||||||||||
TE Connectivity AMP Connectors 1059825-1 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Snap-On, Threaded | Beryllium Copper | 50 Ohms | Gold | Flange | OSM to OSSP | Between Series | Jack to Jack | Female Socket, OSSP Jack | Straight | Female Socket, SMA Jack | Female to Female | ||||||||||||||||||
TE Connectivity AMP Connectors 1059857-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Male Pin, Plug | Beryllium Copper | OSSP, Subminiature | 50 Ohms | Gold | Gold | 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut | 125 °C | -65 ░C | Solder | Bulkhead - Front Side Nut | RG-405 (.085" Semi Rigid) | 28 GHz | 335 V | Gold | ||||||||||||
TE Connectivity AMP Connectors 1059563-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Male Pin, Receptacle | Brass | Mini, OSP | 50 Ohms | Gold | Silver | 125 °C | -65 ░C | Solder | Flange | 18 GHz | 500 V | Solder | Extended Insulation | |||||||||||||
TE Connectivity AMP Connectors 1059350-1 | Polytetrafluoroethylene (PTFE) | 1 | Brass | Snap-On | 5000 | Male Pin, Plug | Brass | Mini, OSP | 50 Ohms | Gold | Gold | 1 Connector, 1 Lockwasher, 1 Nut | 105 ░C | -40 °C | Solder | Bulkhead - Front Side Nut | 6000 MHz | Panel Mount, Right Angle, Through Hole | Gold | Solder | ||||||||||||
TE Connectivity AMP Connectors 1059453-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | 500 | Female Socket, Jack | Beryllium Copper | SMA | 50 Ohms | Gold | Silver | 125 °C | -65 ░C | Solder | Flange | 22 GHz | 500 V | Solder | |||||||||||||||
TE Connectivity AMP Connectors 1059637-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Male Pin, Receptacle | Beryllium Copper | Mini, OSP | 50 Ohms | Gold | Silver | 1 Connector, 1 Gasket | 125 °C | -65 ░C | Solder | 18 GHz | Panel Mount, Threaded | 375 V | Compression | Field Replaceable, For Hermetically Sealed Pin | ||||||||||||
TE Connectivity AMP Connectors 1059874-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Female Socket, Jack | Beryllium Copper | OSSP, Subminiature | 50 Ohms | Gold | Gold | 105 ░C | -65 ░C | Solder | RG-405 (.085" Semi Rigid) | 28 GHz | Panel Mount, Snap-In | 335 V | Gold | |||||||||||||
TE Connectivity AMP Connectors 1059572-1 | Polytetrafluoroethylene (PTFE) | 1 | Stainless Steel | Snap-On | 5000 | Male Pin, Receptacle | Beryllium Copper | Mini, OSP | 50 Ohms | Gold | Silver | 125 °C | -65 ░C | Screw | Flange | 22 GHz | 335 V | Compression | EMI/RFI Gasket, Field Replaceable, For Hermetically Sealed Pin |
Description
General part information
1059 Series
Adapter Coaxial Connector SMA Jack, Female Socket To OSP Jack, Female Socket
