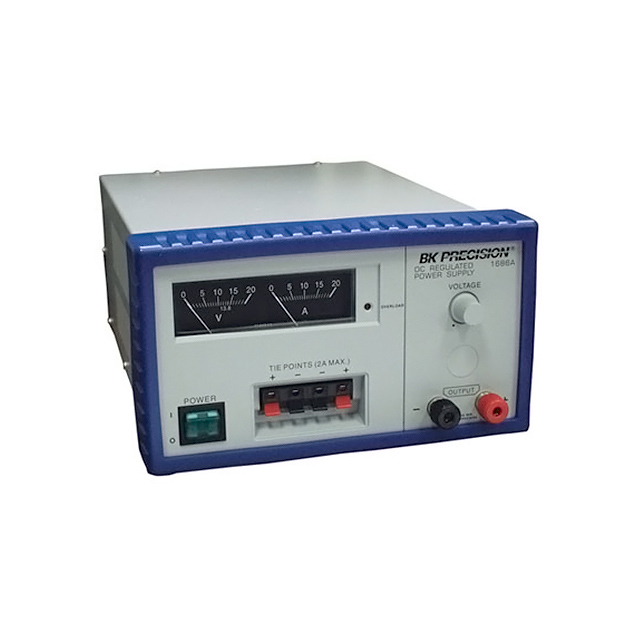

1686A
ObsoleteB&K PRECISION
POWER SUPPLY 3-14VDC 12A
1686A
ObsoleteB&K PRECISION
POWER SUPPLY 3-14VDC 12A
Description
General part information
1686A
3 ~ 14VDC Output Bench (AC to DC) Power Supply Analog 2.5A @ 3VDC, 12A @ 13.8VDC Output Features
Technical Specifications
Parameters and characteristics for this part
| Specification | 1686A |
|---|---|
| Accuracy - Ammeter (Percent) | 0.07 % |
| Accuracy - Voltmeter (Percent) | 0.07 % |
| Current - Output | 2.5 A, 12 A |
| Display Type | Analog |
| Number of Outputs | 1 |
| Ripple Voltage (RMS) | 10 mV |
| Size / Dimension Height | 4.9 in |
| Size / Dimension Length | 11.5 in |
| Size / Dimension Width | 8.5 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 14 V |
| Voltage - Output (Min) | 3 V |
| Voltage - Supply (Maximum) | 132 VAC |
| Voltage - Supply (Minimum) | 108 VAC |
| Voltage Regulation - Line (Absolute) | 0.008 |
| Weight | 13 lbs |
