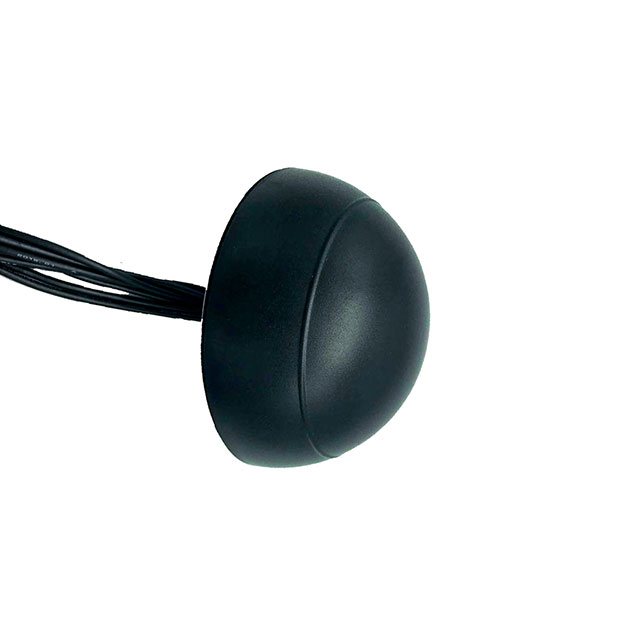

RDM-MBJ3-110053-1M-X-001
ActiveRaltron Electronics
2.4-2.5 & 5.1-5.9GHZ WIFI MIMO T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDM-MBJ3-110053-1M-X-001
ActiveRaltron Electronics
2.4-2.5 & 5.1-5.9GHZ WIFI MIMO T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDM-MBJ3-110053-1M-X-001 |
|---|---|
| Antenna Type | Dome |
| Applications | ISM, Bluetooth, Wi-Fi, 802.15.4 |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 5.5375 GHz, 2.45 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Gain | 3 dBi |
| Height (Max) [Max] | 2.087 in |
| Height (Max) [Max] | 53 mm |
| Ingress Protection | IP67 |
| Mounting Type | Screw |
| Number of Bands | 2 |
| Termination | SMA (3) |
| VSWR | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.81 | |
| 50 | $ 43.63 | |||
| 100 | $ 39.54 | |||
Description
General part information
RDM-MBJ3 Series
2.45GHz, 5.5375GHz 802.15.4, Bluetooth, ISM, Wi-Fi Dome RF Antenna 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz 3dBi SMA (3) Screw
