6160.0152
ObsoleteSCHURTER Inc.
PWR ENT RCPT IEC320-C8 PNL SLDR
6160.0152
ObsoleteSCHURTER Inc.
PWR ENT RCPT IEC320-C8 PNL SLDR
Description
General part information
6160.0152

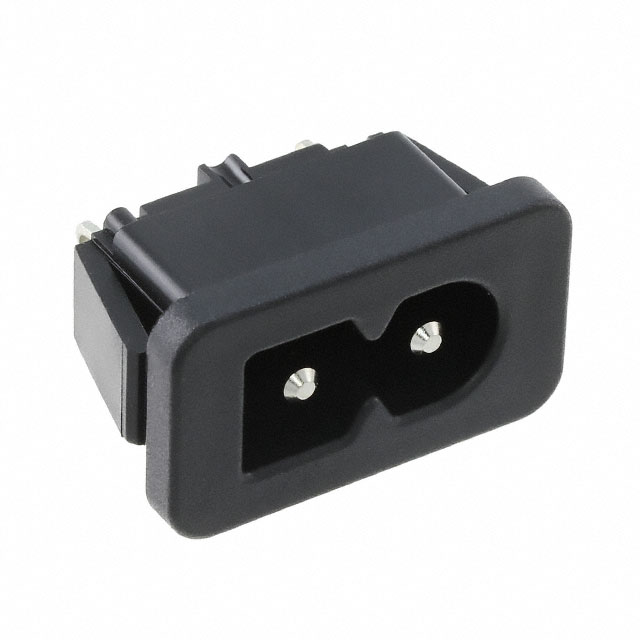

Power Entry Connector Receptacle, Male Pins IEC 320-C8 Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | 6160.0152 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | VDE, cURus |
| Connector Style | IEC 320-C8 |
| Connector Type | Receptacle, Male Pins |
| Current Rating - Appliance Inlet | 2.5 A |
| Filter Type | Unfiltered, Commercial |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Panel Cutout Length | 24.1 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 11.7 mm |
| Panel Thickness | 0.098 in |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
