629-21W4240-3NE

Active

EDAC Inc.

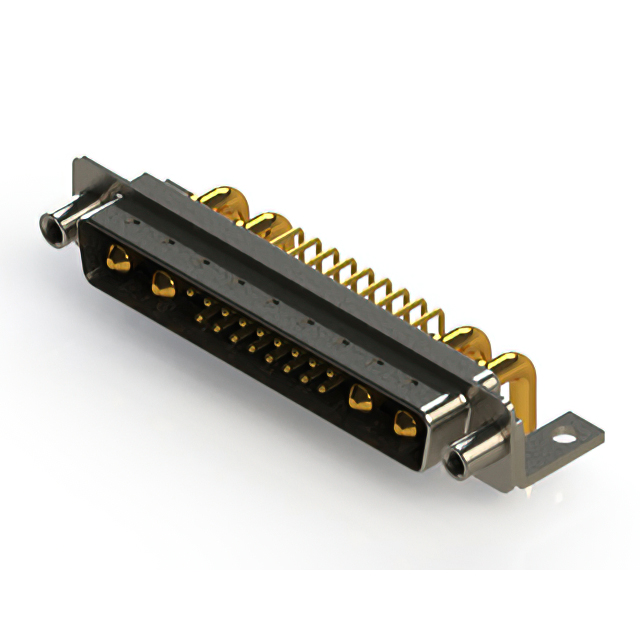

CONN D-SUB PLUG 21POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-21W4240-3NE

Active

EDAC Inc.

CONN D-SUB PLUG 21POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-21W4240-3NE

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	17
Number of Positions [custom]	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	21WA4, 4 (DC, C)
Termination	Solder
Voltage Rating	125 VDC

629-21W Series

...

Part	Contact Finish	Current Rating (Amps)	Flange Feature	Number of Rows	Features	Shell Size, Connector Layout	Color	Contact Type	Shell Material, Finish	Dielectric Material	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Voltage Rating	Mounting Type	Termination	Contact Finish Thickness	Connector Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 629-21W4240-4NE	Gold	5 A 40 A	M3	2	Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder	Flash	Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in
EDAC Inc. 629-21W4650-2NC	Gold	5 A 20 A	Housing/Shell (M3)	2	Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin
EDAC Inc. 629-21W1640-7N4	Gold		Housing/Shell (4-40)	2	Grounding Indents Mounting Brackets	3 (DB B) - 21W1	Black	Coax Signal	Nickel Plated Steel	Polyester Thermoplastic			UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin	21
EDAC Inc. 629-21W4240-3NA	Gold	5 A 30 A	Board Side (M3)	2	Grounding Indents	21WA4 4 (DC C)	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder	Flash	Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in
EDAC Inc. 629-21W4650-3TB	Gold	5 A 30 A	Housing/Shell (M3)	2	Board Lock Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power		Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin
EDAC Inc. 629-21W4240-2T5	Gold	5 A 20 A	4-40	2	Board Lock Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power		Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder	Flash	Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in
EDAC Inc. 629-21W1650-1N3	Gold		Housing/Shell (4-40)	2	Board Lock Grounding Indents Mounting Brackets	3 (DB B) - 21W1	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic		1	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin		20	21	10A 5A
EDAC Inc. 629-21W1650-1N5	Gold		4-40	2	Board Lock Grounding Indents Mounting Brackets	3 (DB B) - 21W1	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic		1	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin		20	21	10A 5A
EDAC Inc. 629-21W1640-1TB	Gold		Housing/Shell (M3)	2	Board Lock Grounding Indents Mounting Brackets	3 (DB B) - 21W1	Black	Signal and Power		Polyester Thermoplastic		1	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin		20	21	10A 5A
EDAC Inc. 629-21W4240-3NE	Gold	5 A 30 A	M3	2	Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder	Flash	Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 13.38

Description

General part information

629-21W Series

21 (17 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
