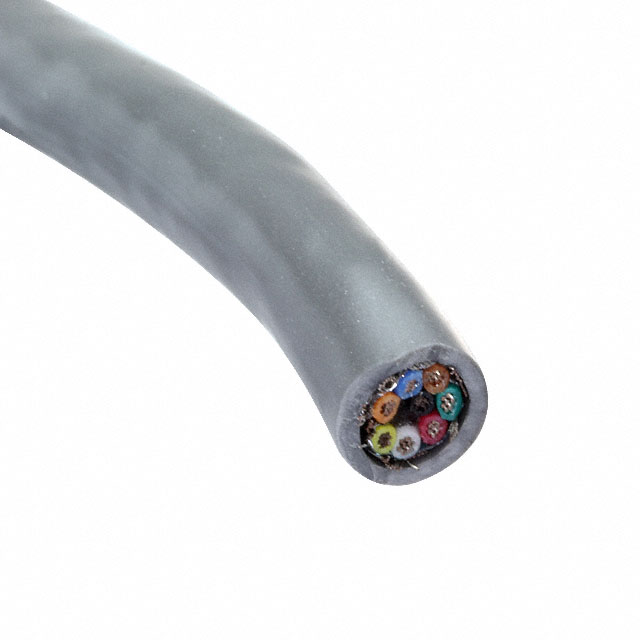

9944 060100

Active

Belden Inc.

CABLE 8COND 22AWG CHROME SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 8COND 22AWG CHROME SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9944 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	22 AWG

Part	Ratings	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Shield Type	Length [x]	Length [x]	Wire Gauge	Cable Type	Shield Coverage	Jacket (Insulation) Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Number of Conductors	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
Belden Inc. 9944 060500	UL Style 2464	Copper Tinned	-30 ░C	80 C	300 V	Braid Foil	500 '	152.4 m	22 AWG	Multi-Conductor	65 % 100 %	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	Chrome	8	Computer	7	30 AWG	Aluminum Copper Tinned	0.264 in	6.71 mm
Belden Inc. 9944 0605000	UL Style 2464	Copper Tinned	-30 ░C	80 C	300 V	Braid Foil			22 AWG	Multi-Conductor	65 % 100 %	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	Chrome	8	Computer	7	30 AWG	Aluminum Copper Tinned	0.264 in	6.71 mm
Belden Inc. 9944 060100		Copper Tinned	-30 ░C	80 C		Braid Foil	100 ft	30.5 m	22 AWG	Multi-Conductor	65 % 100 %	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	Chrome	8	Computer	7	30 AWG	Aluminum Copper Tinned	0.264 in	6.71 mm
Belden Inc. 9944 0601000	UL Style 2464	Copper Tinned	-30 ░C	80 C	300 V	Braid Foil			22 AWG	Multi-Conductor	65 % 100 %	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	Chrome	8	Computer	7	30 AWG	Aluminum Copper Tinned	0.264 in	6.71 mm	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Chrome 22 AWG Foil, Braid 100.0' (30.5m)
