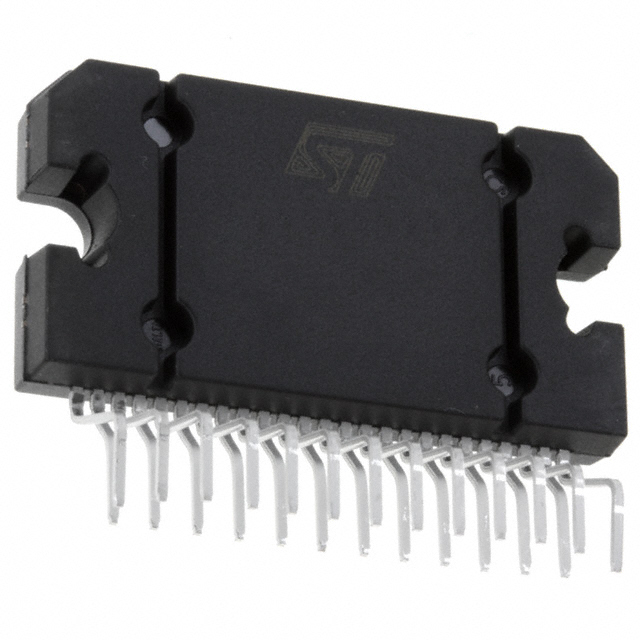

TDA7854
ActiveSTMicroelectronics
IC AMP AB QUAD 80W 25FLEXIWATT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDA7854
ActiveSTMicroelectronics
IC AMP AB QUAD 80W 25FLEXIWATT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDA7854 |
|---|---|
| Features | Short-Circuit and Thermal Protection, Mute, Standby |
| Max Output Power x Channels @ Load | 80 W |
| Max Output Power x Channels @ Load [custom] | 2 Ohm |
| Max Output Power x Channels @ Load [custom] | 4 |
| Mounting Type | Through Hole |
| Output Type | 4-Channel (Quad) |
| Package / Case | 25-Flexiwatt, Formed Leads |
| Supplier Device Package | 25-Flexiwatt (Vertical) |
| Type | Class AB |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TDA7854 Series
IC AMP AB QUAD 80W 25FLEXIWATT
| Part | Mounting Type | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load | Max Output Power x Channels @ Load [custom] | Type | Features | Output Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TDA7854 | Through Hole | 25-Flexiwatt (Vertical) | 8 V | 18 V | 2 Ohm | 80 W | 4 | Class AB | Mute, Short-Circuit and Thermal Protection, Standby | 4-Channel (Quad) | 25-Flexiwatt, Formed Leads |
Description
General part information
TDA7854 Series
Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Vertical)
