202-0019-01

Active

Schmartboard, Inc.

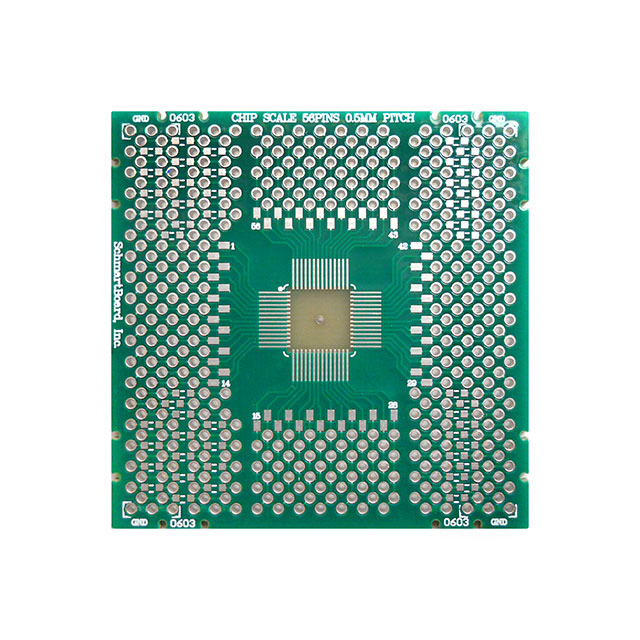

QFN SCHMARTBOARDEZ 56 PINS, 0.5M

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFN SCHMARTBOARDEZ 56 PINS, 0.5M

Technical Specifications

Parameters and characteristics for this part

Specification	202-0019-01

Number of Positions	56
Package Accepted	QFN
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

QFN SCHMARTBOARDEZ 56 PINS, 0.5M

Part	Proto Board Type	Pitch [x]	Pitch [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions	Package Accepted
Schmartboard, Inc. 202-0019-01	SMD to Plated Through Hole Board	0.5 mm	0.02 in	2 in	50.8 mm	50.8 mm	2 in	56	QFN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

QFN SCHMARTBOARDEZ 56 PINS, 0.5M

Technical documentation and resources
