RFB-1130-3

Active

RF Industries

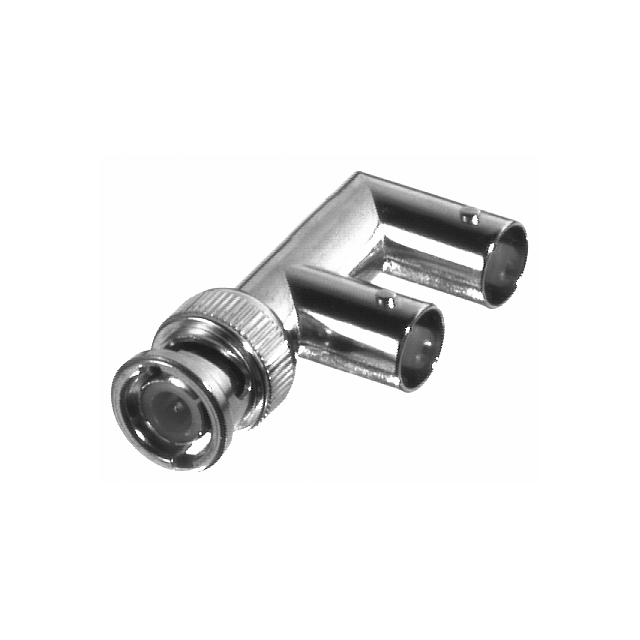

F SHAPE; BNC; 2 FEMALE-1 MALE

Search across all available documentation for this part.

Active

RF Industries

F SHAPE; BNC; 2 FEMALE-1 MALE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RFB-1130-3	RFB-1130 Series

Adapter Series	BNC to BNC, Dual	BNC to BNC, Dual
Adapter Type	Plug to Jack	Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass, Zinc Die Cast
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Jack, Female Socket (2)	BNC Jack, Female Socket (2)
Dielectric Material	Polyoxymethylene (POM) Acetal	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	1 - 4 GHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	F-Shape	F-Shape, T-Shape, U-Shape

F SHAPE; BNC; 2 FEMALE-1 MALE

Part	Adapter Type	Fastening Type	Mounting Type	Convert From (Adapter End)	Conversion Type	Center Contact Material	Frequency - Max [Max]	Body Material	Dielectric Material	Adapter Series	Impedance	Center Contact Plating	Convert To (Adapter End)	Body Finish	Style
RF Industries RFB-1130-3	Plug to Jack	Bayonet Lock	Free Hanging (In-Line)	BNC Plug, Male Pin	Same Series	Brass	4 GHz	Brass	Polyoxymethylene (POM) Acetal	BNC to BNC, Dual	50 Ohms	Gold	BNC Jack, Female Socket (2)	Nickel	F-Shape
RF Industries RFB-1130-1	Plug to Jack	Bayonet Lock	Free Hanging (In-Line)	BNC Plug, Male Pin	Same Series	Brass	4 GHz	Zinc Die Cast	Polyoxymethylene (POM) Acetal	BNC to BNC, Dual	50 Ohms	Gold	BNC Jack, Female Socket (2)	Nickel	T-Shape
RF Industries RFB-1130-5	Plug to Jack	Bayonet Lock	Free Hanging (In-Line)	BNC Plug, Male Pin	Same Series	Brass	1 GHz	Zinc Die Cast	Polyoxymethylene (POM) Acetal	BNC to BNC, Dual	50 Ohms	Gold	BNC Jack, Female Socket (2)	Nickel	U-Shape

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohms
