PSA.00.250.CTLC29

Active

LEMO

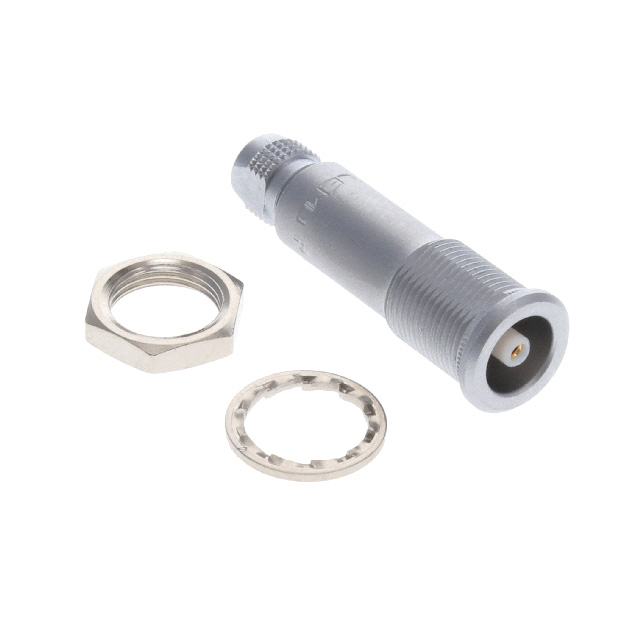

CONN NIMCAMAC RCPT STR 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

Documents00,01 Series Connectors Catalog Datasheet

PSA.00.250.CTLC29

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Deep-Dive with AI

Documents00,01 Series Connectors Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.91
		10	$ 16.56
		25	$ 15.84
		50	$ 15.33
		100	$ 14.82
		250	$ 14.00
		500	$ 13.59

Description

General part information

PSA.00.250 Series

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

00,01 Series Connectors Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSA.00.250.CTLC29	PSA.00.250 Series

Body Finish	Chrome	Chrome, Nickel
Body Material	Brass	Brass
Cable Group	RG-316	RG-178B, 196A, RG-174A, RG-174, 179B, 316, 187A, 188A, RG-316
Center Contact Material	Bronze	Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket, Male Pin
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Clamp	Clamp
Voltage Rating	700 VDC	700 VDC

PSA.00.250 Series

1 BOARD-END 50Ω COAXIAL CONNECTORS (RF) ROHS

Part	Mounting Feature	Ingress Protection	Body Finish	Center Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Fastening Type	Voltage Rating	Connector Type	Includes	Impedance	Center Contact Plating	Housing Color	Number of Ports	Mating Cycles	Shield Termination	Contact Termination	Cable Group
LEMO PSA.00.250.CTLC17	Bulkhead - Rear Side Nut	IP50	Chrome	Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver	1	5000	Clamp	Solder
LEMO PSA.00.250.NTLC22	Bulkhead - Rear Side Nut	IP50	Nickel	Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver		5000	Clamp	Solder	196A, RG-178B
LEMO PSA.00.250.ZTL	Bulkhead - Rear Side Nut	IP50		Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)		Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold		1	5000		Solder
LEMO PSA.00.250.CTLC31	Bulkhead - Rear Side Nut	IP50	Chrome	Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver	1	5000	Clamp	Solder	RG-174A
LEMO PSA.00.250.NTLC31	Bulkhead - Rear Side Nut	IP50	Nickel	Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver		5000	Clamp	Solder	RG-174A
LEMO PSA.00.250.CTLC27	Bulkhead - Rear Side Nut	IP50	Chrome	Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver	1	5000	Clamp	Solder	179B, 187A, 188A, 316, RG-174
LEMO PSA.00.250.CTAC22	Bulkhead - Rear Side Nut	IP50	Chrome	Brass	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Male Pin, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver		5000	Clamp	Solder	196A, RG-178B
LEMO PSA.00.250.NTLC27	Bulkhead - Rear Side Nut	IP50	Nickel	Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver		5000	Clamp	Solder	179B, 187A, 188A, 316, RG-174
LEMO PSA.00.250.CTLC29	Bulkhead - Rear Side Nut	IP50	Chrome	Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver	1	5000	Clamp	Solder	RG-316
LEMO PSA.00.250.CTLC22	Bulkhead - Rear Side Nut	IP50	Chrome	Bronze	NIM-CAMAC CD/N 549	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Brass	Push-Pull	700 VDC	Female Socket, Receptacle	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Gold	Silver	1	5000	Clamp	Solder	196A, RG-178B
