3061347
ActivePhoenix Contact

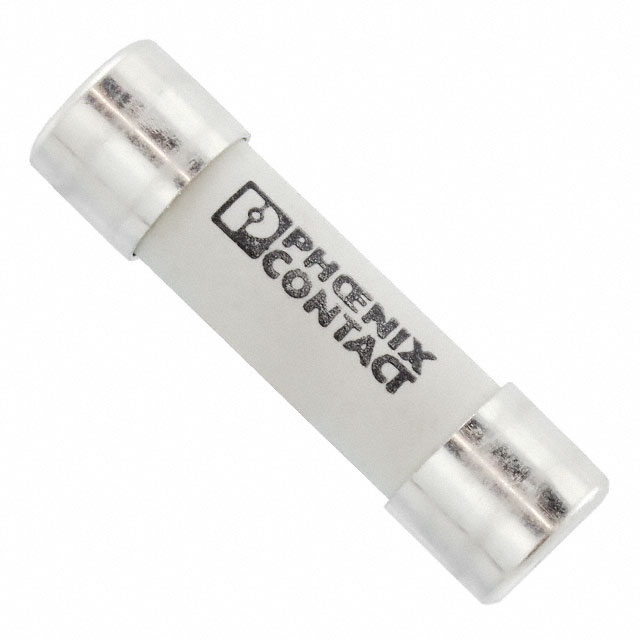

FUSE CERAMIC 12A 1000VDC 5AG
3061347
ActivePhoenix Contact
FUSE CERAMIC 12A 1000VDC 5AG
Description
General part information
3061347
12 A AC 1000 V DC Fuse Cartridge, Ceramic Requires Holder 5AG, 10mm x 38mm (Midget)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3061347 |
|---|---|
| Approval Agency | UL |
| Current Rating | 12 A |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Package Features | Midget |
| Package Length | 10 mm |
| Package Name | 5AG Midget, 5AG |
| Package Width | 38 mm |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.496 in |
| Voltage Rating - DC | 1 kV |
