1688421
ActivePhoenix Contact
CONN D-SUB HOUSING RCPT 2POS
1688421
ActivePhoenix Contact
CONN D-SUB HOUSING RCPT 2POS
Description
General part information
1688421

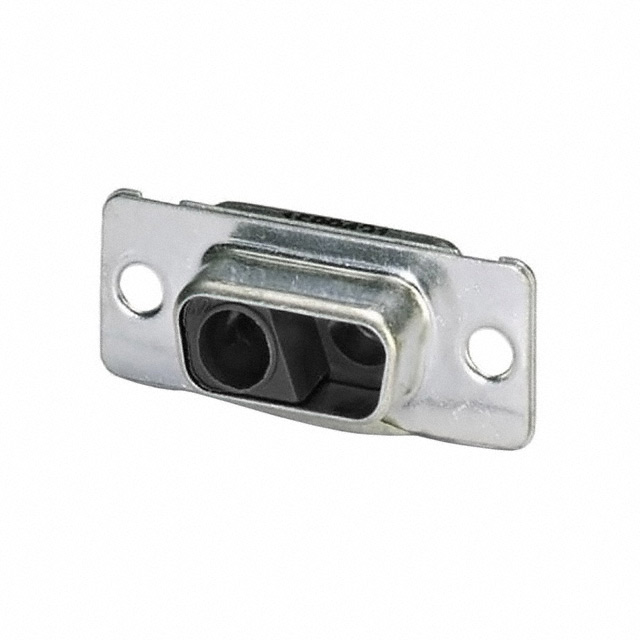

Receptacle for Female Contacts Housing D-Sub, Combo Connector 2 (Coax or Power) Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 1688421 |
|---|---|
| Connector Layout | DE, E, 2W2C |
| Connector Style | Combo, D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Coax or Power, Coax, Power |
| Dielectric Material | Polyester, Polybutylene Terephthalate (PBT) |
| Finish | Yellow Chromate Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Mating Cycles | 500 cycles |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 2V2 |
| Position Types | Coax, Power |
| Shell Material | Steel |
| Shell Size | 1 |
