83318E 009500

Active

Belden Inc.

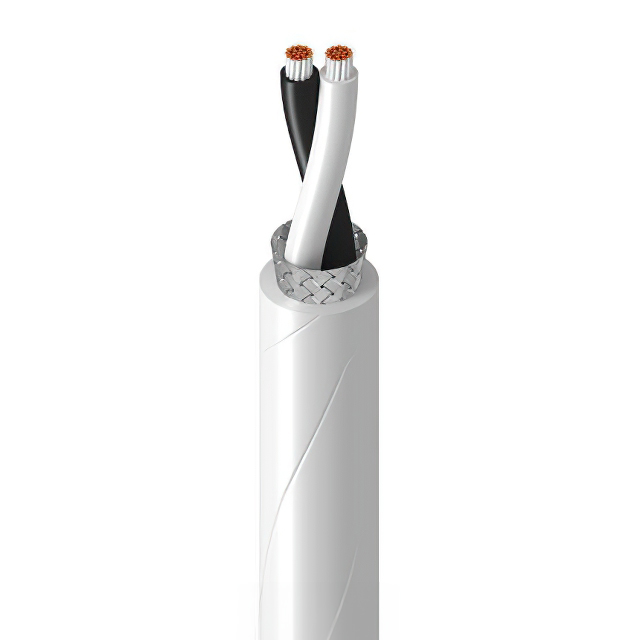

CABLE 2CON 24AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 24AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83318E 009500

Cable Type	Multi-Conductor
Conductor Insulation	Tetrafluoroethylene (TFE)
Conductor Material	Copper, Silver Coated
Jacket (Insulation) Diameter [diameter]	0.131 in
Jacket (Insulation) Diameter [diameter]	3.33 mm
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-W-16878/4 Type E
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	24 AWG

Part	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Shield Type	Length [x]	Length [x]	Wire Gauge	Number of Conductors	Conductor Insulation	Shield Material	Conductor Material	Jacket (Insulation) Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 83318E 009500	85 %	-65 ░C	200 °C	MIL-W-16878/4 Type E	0.279 mm	0.011 in	Multi-Conductor	Braid	500 '	152.4 m	24 AWG	2	Tetrafluoroethylene (TFE)	Copper Silver Coated	Copper Silver Coated	Tetrafluoroethylene (TFE)	600 V	0.131 in	3.33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair) Conductor Multi-Conductor Cable White 24 AWG Braid 500.0' (152.4m)
