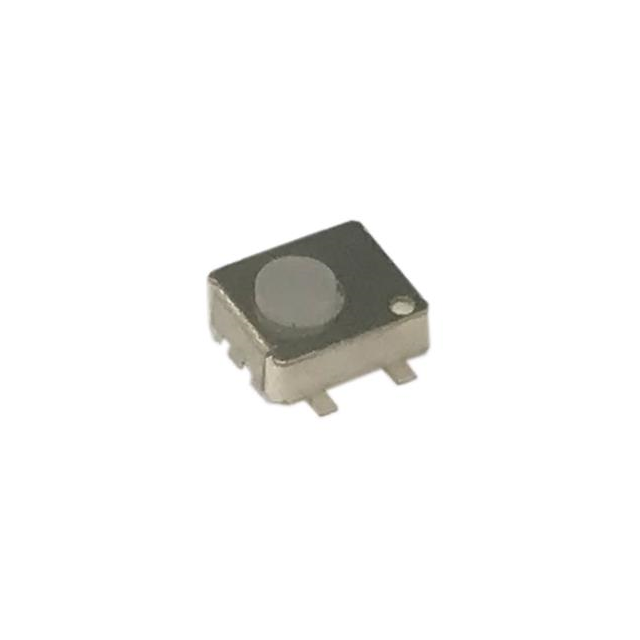

228GMVABFR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
228GMVABFR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 228GMVABFR | 228GMVA Series |
|---|---|---|
| Actuator Orientation | Top Actuated | Top Actuated |
| Actuator Type | Standard | Standard |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC | 0.05 - 12 A |
| Illumination | Illuminated | Illuminated |
| Illumination Type, Color | LED, Blue | LED, Green, Blue |
| Illumination Voltage (Nominal) | - | 1.9 VDC |
| Mechanical Life | 100000 Cycles | 100000 Cycles |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Outline [x] | 6 mm | 6 mm |
| Outline [y] | 5 mm | 5 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.5 mm | 0.5 mm |
| Termination Style | Gull Wing | Gull Wing |
228GMVA Series
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Contact Rating @ Voltage | Mounting Type | Switch Travel | Illumination Voltage (Nominal) | Termination Style | Illumination Type, Color | Circuit | Switch Function | Actuator Type | Actuator Orientation | Mechanical Life | Outline [y] | Outline [x] | Operating Temperature [Min] | Operating Temperature [Max] | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTS Electrocomponents 228GMVALFR | 0.05 A, 12 VDC | Surface Mount | 0.5 mm | 1.9 VDC | Gull Wing | Green, LED | SPST-NO | Off-Mom | Standard | Top Actuated | 100000 Cycles | 5 mm | 6 mm | -20 C | 70 °C | Illuminated |
CTS Electrocomponents 228GMVABFR | 0.05 A, 12 VDC | Surface Mount | 0.5 mm | Gull Wing | Blue, LED | SPST-NO | Off-Mom | Standard | Top Actuated | 100000 Cycles | 5 mm | 6 mm | -20 C | 70 °C | Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.94 | |
| 10 | $ 2.39 | |||
| 25 | $ 2.20 | |||
| 100 | $ 1.93 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.66 | |||
| Digi-Reel® | 1 | $ 2.94 | ||
| 10 | $ 2.39 | |||
| 25 | $ 2.20 | |||
| 100 | $ 1.93 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.66 | |||
| Tape & Reel (TR) | 1650 | $ 1.54 | ||
| 3300 | $ 1.44 | |||
| 4950 | $ 1.38 | |||
Description
General part information
228GMVA Series
Tactile Switch SPST-NO Top Actuated Surface Mount
