Description

General part information

3101.0020

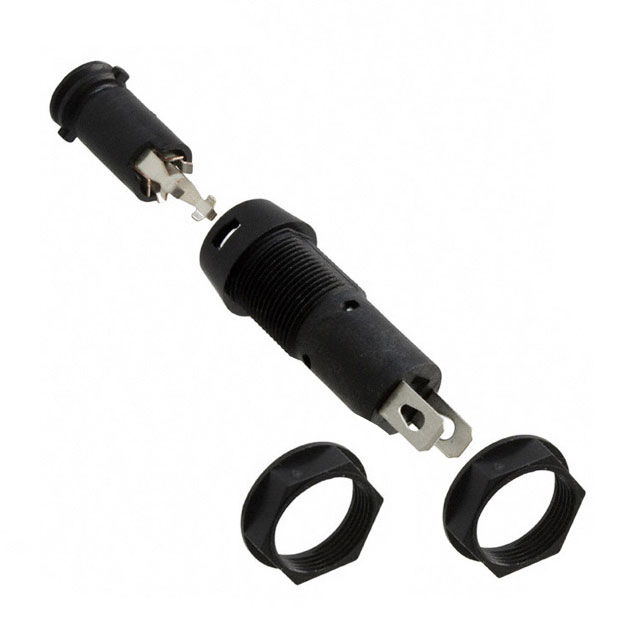

The 3101.0020 is a 16A/250VAC Cartridge Fuse Holder with thermoplastic socket, slot knob, tin-plated copper alloy solder terminal and screwdriver release. This FPG2-series rear side panel mount holder features shock safe category PC2.

Technical Specifications

Parameters and characteristics for this part

Specification3101.0020
Contact FinishTin
Contact MaterialCopper Alloy
Current Rating16 A
For Use With/Related Products5mm x 20mm
Fuse Diameter0.197 in
Fuse Length0.787 in
Fuse TypeCartridge
Fuseholder TypeHolder
Mounting TypePanel Mount
Number of Circuits1
Termination StyleSolder Lug
Voltage500 V
