1411136

Active

Phoenix Contact

CABLE GLAND 15-21MM M32 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 15-21MM M32 POLYAMID

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

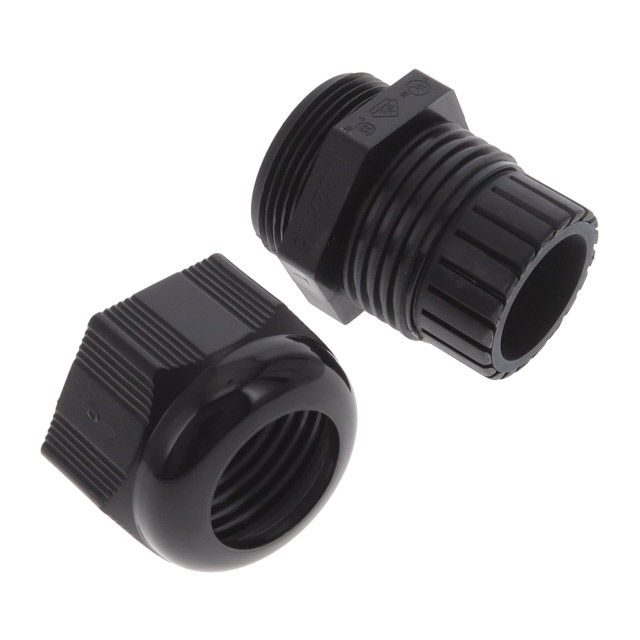

Cable Gland Polyamide (PA), Nylon M32 Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1411136	G-INS-M32 Series

Color	Black	Silver, Gray, Black
Includes	Seal	O-Ring, Seal
Ingress Protection	IP66/IP68	IP66, IP68, IP69, IP66/IP68
Material	Polyamide (PA), Nylon	Brass, Nickel Plated, Polyamide (PA), Nylon, Stainless Steel
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	21 mm	18.01 - 21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in	0.709 - 0.984 in
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.591 "	0.512 - 0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	15 mm	15 - 18.01 mm
Thread Length	10 mm	8 - 16 mm
Thread Length	0.394 in	0.315 - 0.63 in
Thread Size	M32	M32x1.5, M32
Type	Cable Gland	Cable Gland

CABLE GLAND 13-18.01MM M32 BRASS

Part	Includes	Material	Color	Ingress Protection	Thread Length	Thread Length	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1424528	O-Ring, Seal	Brass, Nickel Plated	Silver	IP66, IP68, IP69	0.354 in	9 mm	Cable Gland	100 °C	-40 °C	M32x1.5	0.709 in	18.01 mm	0.512 in	13 mm
Phoenix Contact 1424473	Seal	Polyamide (PA), Nylon	Gray	IP66/IP68	0.591 in	15 mm	Cable Gland	100 °C	-40 °C	M32x1.5	0.984 in		0.709 in		25 mm	18.01 mm
Phoenix Contact 1424483	Seal	Polyamide (PA), Nylon	Black	IP66/IP68	0.63 in	16 mm	Cable Gland	100 °C	-40 °C	M32x1.5	0.984 in		0.709 in		25 mm	18.01 mm
Phoenix Contact 1411136	Seal	Polyamide (PA), Nylon	Black	IP66/IP68	0.394 in	10 mm	Cable Gland	100 °C	-40 °C	M32	0.827 in	21 mm	0.591 "			15 mm
Phoenix Contact 1411166	O-Ring, Seal	Brass, Nickel Plated	Silver	IP66, IP68, IP69	0.315 in	8 mm	Cable Gland	100 °C	-40 °C	M32	0.827 in	21 mm	0.591 "			15 mm
Phoenix Contact 1424545	O-Ring, Seal	Stainless Steel	Silver	IP66, IP68, IP69	0.315 in	8 mm	Cable Gland	100 °C	-40 °C	M32x1.5	0.827 in	21 mm	0.591 "			15 mm
