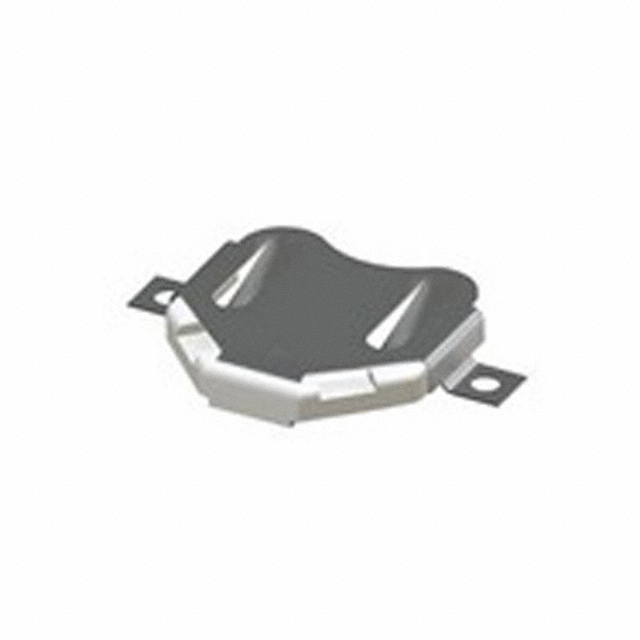

3070TR
ActiveKeystone Electronics
BATT RETAINER COIN 1/2 CELL SMD
3070TR
ActiveKeystone Electronics
BATT RETAINER COIN 1/2 CELL SMD
Description
General part information
3070TR
Battery Retainer Coin, 20.0mm 1, 2 Cell SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | 3070TR |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 20 mm |
| Battery Series | 2020 (1), 2016 (2), 2012 (2), 2025 (1) |
| Battery Type | Coin Cell |
| Function | Retainer |
| Height Above Board | 0.156 in |
| Mounting Type | Surface Mount, PCB |
| Number of Cells | 1, 2 |
| Number of Cells | 1, 2 |
| Style | Retainer |
| Termination Style | SMD (SMT) Tab |
