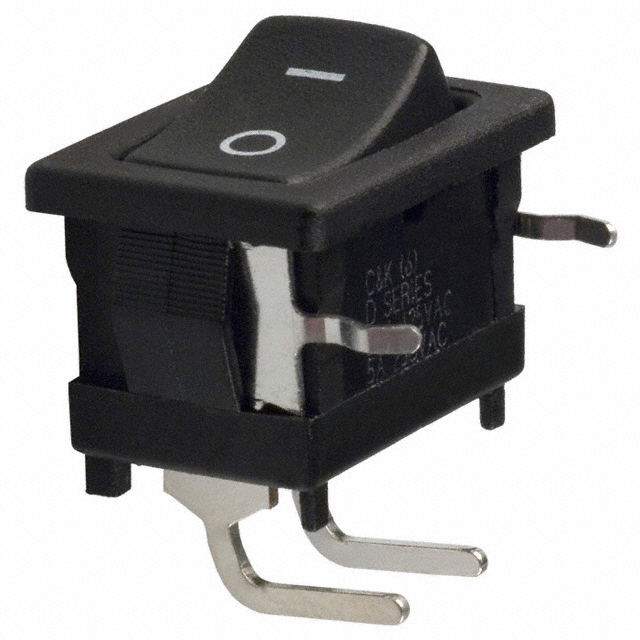

Specification	D502J12S2AHQF

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	cULus
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating	10 A
Electrical Life (Cycles)	10000 Cycles
Mounting Type	Snap-In, Right Angle, Panel Mount
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Length	19.2 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	12.9 mm
Switch Function	On-Off
Termination Style	PC Pin
Voltage Rating - AC	125 V

D502J Series

Part	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Approval Agency	Switch Function	Electrical Life (Cycles)	Color - Actuator/Cap	Mounting Type	Voltage Rating - AC	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Marking	Quick Connect Size (0.187")	Termination Style	Actuator Type	Current Rating
LITTELFUSE D105J19S205QA	19.2 mm	Rectangular	12.9 mm	cULus	Mom-Off-Mom	10000 Cycles	Gray	Panel Mount Snap-In	125 V	SPDT	65 °C	-30 °C	No Marking	0.187 in	Quick Connect	Concave (Curved)	4 A
LITTELFUSE D503J12S205DQA
LITTELFUSE D101J12B215QA	27.13 mm	Rectangular	19.2 mm	cULus	On-On	10000 Cycles	Black	Panel Mount Snap-In	125 V	SPDT	65 °C	-30 °C	No Marking	0.187 in	Quick Connect	Concave (Curved)	4 A
