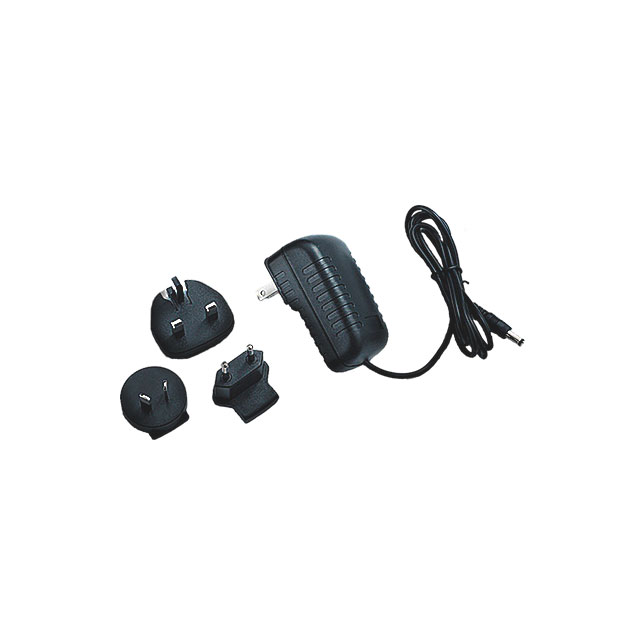

ADAPTOR-5V1A

Active

4D Systems Pty Ltd

AC/DC WALL MOUNT ADAPTER 5V

Search across all available documentation for this part.

Active

4D Systems Pty Ltd

AC/DC WALL MOUNT ADAPTER 5V

Technical Specifications

Parameters and characteristics for this part

AC/DC WALL MOUNT ADAPTER 5V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Input Type	Output Connector [diameter]	Output Connector [x]	Output Connector	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Polarization	Input Connector	Efficiency	Form
4D Systems Pty Ltd ADAPTOR-5V1A	90 VAC	264 VAC	International	ITE (Commercial)	40 °C	0 °C	5 V	Multi-Blade (Included)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	1 A	40 mm	1.36 "	1.57 "	68 mm	34.5 mm	2.68 in	Positive Center	Multi-Blade (Included)	80 %	Wall Mount (Class II)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.95

General part information

5V AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
