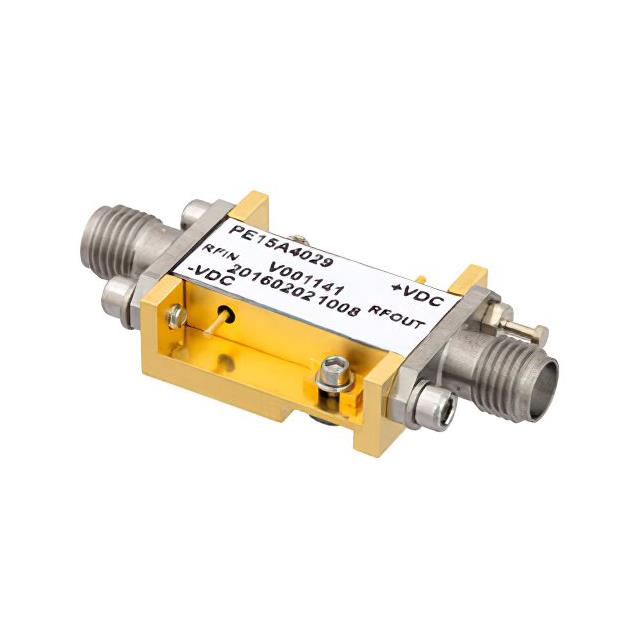

PE15A4029
ActivePasternack
23 DBM P1DB, 10 MHZ TO 20 GHZ, M
PE15A4029
ActivePasternack
23 DBM P1DB, 10 MHZ TO 20 GHZ, M
Description
General part information
PE15A4029
RF Amplifier IC Radar, VSAT 10MHz ~ 20GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A4029 |
|---|---|
| Current - Supply | 225 mA |
| Frequency (Max) | 20 GHz |
| Frequency (Min) | 10 MHz |
| Gain | 13 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 4 dB |
| P1dB | 24 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | VSAT, Radar |
| Test Frequency (Maximum) | 6 GHz |
| Test Frequency (Minimum) | 10 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
