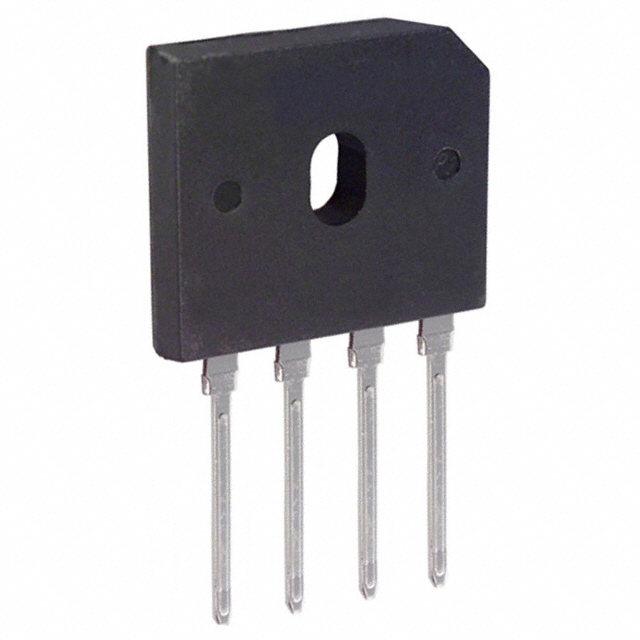

GBU802 - 31-GBU

GBU802

Active
Diodes Inc

BRIDGE RECT 1PHASE 200V 8A GBU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetRecommended Soldering Techniques+2
GBU802 - 31-GBU

GBU802

Active
Diodes Inc

BRIDGE RECT 1PHASE 200V 8A GBU

Deep-Dive with AI

DocumentsDatasheetRecommended Soldering Techniques+2

Technical Specifications

Parameters and characteristics for this part

SpecificationGBU802
Current - Average Rectified (Io)8 A
Current - Reverse Leakage @ Vr5 µA
Diode TypeSingle Phase
Mounting TypeThrough Hole
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
Package / Case4-SIP, GBU
Supplier Device PackageGBU
TechnologyStandard
Voltage - Forward (Vf) (Max) @ If1 V
Voltage - Peak Reverse (Max) [Max]200 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 1.36
1$ 1.23
10$ 1.00
20$ 1.11
100$ 0.86
100$ 0.78
500$ 0.66
500$ 0.73
1000$ 0.54
1000$ 0.60
1000$ 0.37
2000$ 0.56
2000$ 0.51
5000$ 0.48
5000$ 0.54
10000$ 0.46
10000$ 0.53

Description

General part information

GBU802 Series

bridge rectifier
