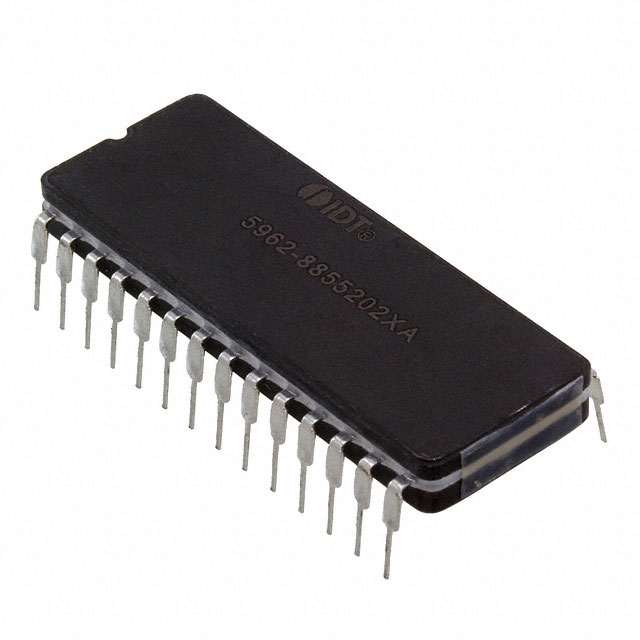

5962-8855202XA

Active

Renesas Electronics Corporation

5.0V 32K X 8 ASYNCHRONOUS STATIC RAM

Deep-Dive with AI

Search across all available documentation for this part.

Documents71256S_L Data Sheet Datasheet

5962-8855202XA

Active

Renesas Electronics Corporation

5.0V 32K X 8 ASYNCHRONOUS STATIC RAM

Deep-Dive with AI

Documents71256S_L Data Sheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

5962-88552 Series

The 5962-88552 (71256 SRAM) is organized as 32K x 8. This part offers a reduced power standby mode for significant system level power and cooling savings. It also offers a battery backup data retention capability allowing operation off a 2V battery. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Documents

Technical documentation and resources

71256S_L Data Sheet

Datasheet

Specification	5962-8855202XA	5962-88552 Series

Access Time	-	100 ns
Memory Format	SRAM	SRAM
Memory Interface	Parallel	Parallel
Memory Organization	32K x 8	32K x 8
Memory Size	32 KB	32 KB
Memory Type	Volatile	Volatile
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	15.24 mm	7.62 - 15.24 mm
Package / Case	0.6 in	0.3 - 0.6 in
Package / Case	28-CDIP	28-CDIP
Supplier Device Package	28-CDIP	28-CDIP
Technology	SRAM - Asynchronous	SRAM - Synchronous, SRAM - Asynchronous
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V
Write Cycle Time - Word, Page	-	100 ns
Write Cycle Time - Word, Page	-	100 ns

Part	Memory Organization	Mounting Type	Memory Size	Supplier Device Package	Memory Format	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Package / Case	Package / Case	Package / Case	Technology	Access Time	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]
Renesas Electronics Corporation 5962-8855201UA	32K x 8	Through Hole	32 KB	28-CDIP	SRAM	100 ns	100 ns	7.62 mm	0.3 in	28-CDIP	SRAM - Synchronous	100 ns	Volatile	125 °C	-55 °C	Parallel	4.5 V	5.5 V
Renesas Electronics Corporation 5962-8855202XA	32K x 8	Through Hole	32 KB	28-CDIP	SRAM			15.24 mm	0.6 in	28-CDIP	SRAM - Asynchronous		Volatile	125 °C	-55 °C	Parallel	4.5 V	5.5 V
Renesas Electronics Corporation 5962-8855201XA	32K x 8	Through Hole	32 KB	28-CDIP	SRAM	100 ns	100 ns	15.24 mm	0.6 in	28-CDIP	SRAM - Synchronous	100 ns	Volatile	125 °C	-55 °C	Parallel	4.5 V	5.5 V
