SDCL1V2010-R47N-R
ActiveEaton - Electronics Division
IND 0.47 UH 2.4A SMT
SDCL1V2010-R47N-R
ActiveEaton - Electronics Division
IND 0.47 UH 2.4A SMT
Description
General part information
SDCL1V2010-R47N-R

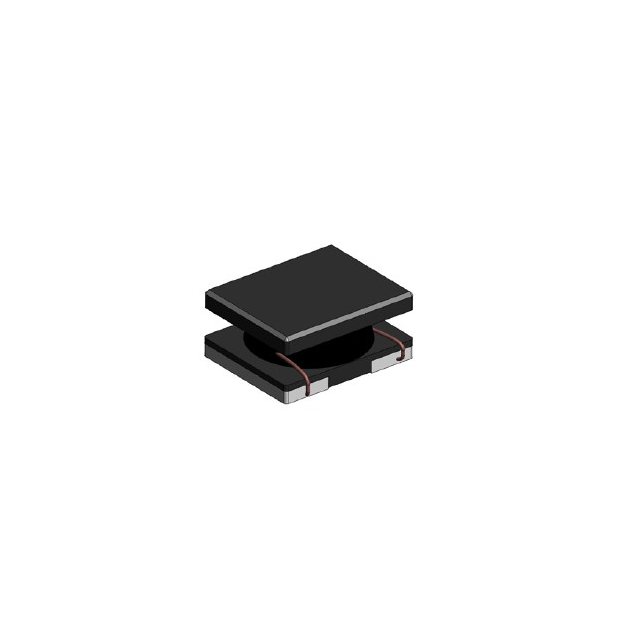

470 nH Shielded Inductor 2.3 A 53mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SDCL1V2010-R47N-R |
|---|---|
| Current - Saturation (Isat) | 2.4 A |
| Current Rating | 2.3 A |
| DC Resistance (DCR) (Max) | 53 mOhm |
| Height - Seated (Max) | 0.041 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.083 in |
| Size / Dimension Width | 0.067 in |
| Tolerance | 30 % |
