Description
General part information

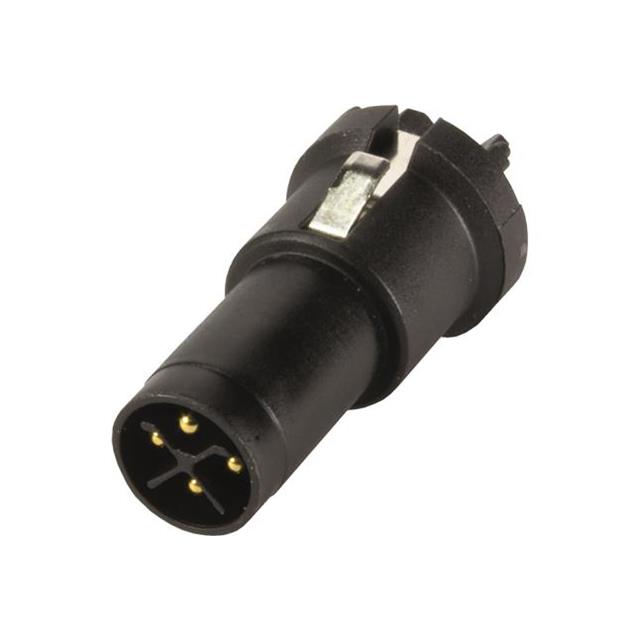

21033091403
4 (3 Power + PE) Position Circular Connector Receptacle, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 21033091403 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 12 A |
| Fastening Type | Threaded |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | S |
| Position Types | Power, PE |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 630 V |
