T4113502021-000
ActiveTE Connectivity AMP Connectors

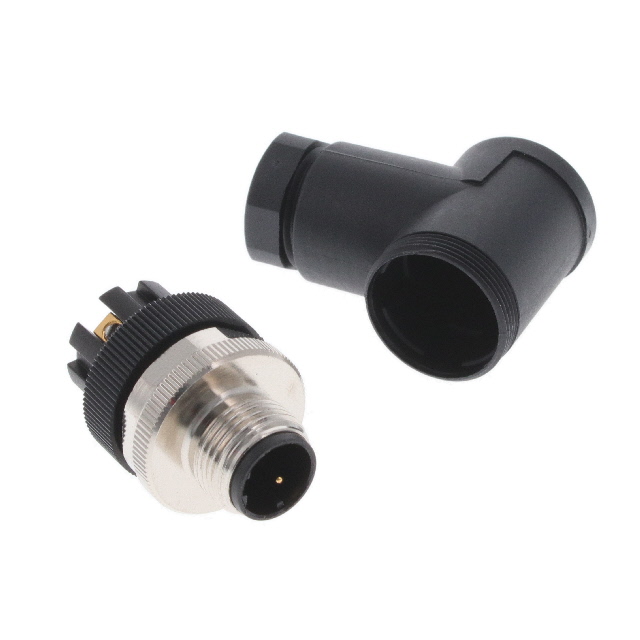

CONN RCPT MALE 2POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4113502021-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 2POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4113502021-000 | T41135 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) | Nickel, Brass, Glass Filled, Polybutylene Terephthalate (PBT) |
| Cable Opening | - | 4 - 6 mm |
| Cable Opening | - | 0.157 - 0.236 in |
| Cable Opening [Max] [custom] | 8 mm | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in | 0.236 in |
| Color | Black, Silver | Silver, Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 - 80 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 - 2.03 µm |
| Contact Material | Brass | Brass, Zinc Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 2 | 2 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | D | D |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | M12-2 | M12-4, M12-3, M12-5, M12-2 |
| Shielding | Unshielded | Shielded, Unshielded |
| Termination | Screw | Screw |
| Voltage Rating | 250 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.56 | |
| 10 | $ 2.28 | |||
| 25 | $ 2.27 | |||
| 50 | $ 2.25 | |||
| 100 | $ 2.05 | |||
T41135 Series
CONN RCPT MALE 4POS SILVER SCREW
| Part | Contact Finish - Mating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Shielding | Number of Positions | Primary Material | Applications | Contact Material | Termination | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Insert Material | Mounting Type | Shell Finish | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Ingress Protection | Shell Size - Insert | Features | Voltage Rating | Orientation | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4113512042-000 | Silver | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | 4 | Metal | Industrial | Brass | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-4 | Backshell | 250 VDC | D | Male Pins, Receptacle | ||
TE Connectivity AMP Connectors T4113502032-000 | Silver | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | Metal | Industrial | Brass | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-3 | Backshell | 250 VDC | D | Male Pins, Receptacle | |||
TE Connectivity AMP Connectors T4113501052-000 | Silver | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-5 | Backshell | 60 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4113511042-000 | Silver | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | 4 | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-4 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4113512032-000 | Silver | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | Metal | Industrial | Brass | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-3 | Backshell | 250 VDC | D | Male Pins, Receptacle | |||
TE Connectivity AMP Connectors T4113501042-000 | Silver | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | 4 | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-4 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4113502021-000 | Gold | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | 2 | Metal | Industrial | Brass | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-2 | Backshell | 250 VDC | D | Male Pins, Receptacle | ||
TE Connectivity AMP Connectors T4113502031-000 | Gold | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | Metal | Industrial | Zinc Alloy | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-3 | Backshell | 250 VDC | D | Male Pins, Receptacle | |||
TE Connectivity AMP Connectors T4113511032-000 | Silver | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-3 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4113501022-000 | Silver | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | 2 | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-2 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4113511031-000 | Gold | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-3 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4113512021-000 | Gold | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | 2 | Metal | Industrial | Brass | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-2 | Backshell | 250 VDC | D | Male Pins, Receptacle | ||
TE Connectivity AMP Connectors T4113502042-000 | Silver | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | 4 | Metal | Industrial | Brass | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-4 | Backshell | 250 VDC | D | Male Pins, Receptacle | ||
TE Connectivity AMP Connectors T4113501051-000 | Gold | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | Metal | Industrial | Zinc Alloy | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-5 | Backshell | 60 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4113501031-000 | Gold | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-3 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4113511052-000 | Silver | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 2.03 µm | 80 µin | Brass | IP67 - Dust Tight, Waterproof | M12-5 | Backshell | 60 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4113511051-000 | Gold | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | Metal | Industrial | Zinc Alloy | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-5 | Backshell | 60 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | |||||
TE Connectivity AMP Connectors T4113501021-000 | Gold | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | 2 | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-2 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4113511021-000 | Gold | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | 2 | Metal | Industrial | Brass | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-2 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in | ||||
TE Connectivity AMP Connectors T4113502051-000 | Gold | 4 A | 85 °C | -40 °C | Glass Filled, Polybutylene Terephthalate (PBT) | Unshielded | Metal | Industrial | Zinc Alloy | Screw | 8 mm | 6 mm | 0.315 in | 0.236 in | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Black, Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-5 | Backshell | 60 VDC | D | Male Pins, Receptacle | |||
TE Connectivity AMP Connectors T4113511041-000 | Gold | 4 A | 85 °C | -40 °C | Brass, Nickel | Shielded | 4 | Metal | Industrial | Zinc Alloy | Screw | Nylon, Polyamide (PA) | Free Hanging (In-Line), Right Angle | Nickel | Silver | 0.076 µm | 3 µin | Brass | IP67 - Dust Tight, Waterproof | M12-4 | Backshell | 250 VDC | D | Male Pins, Receptacle | 4 mm, 6 mm | 0.157 in, 0.236 in |
Description
General part information
T41135 Series
2 Position Circular Connector Receptacle, Male Pins Screw
