General part information

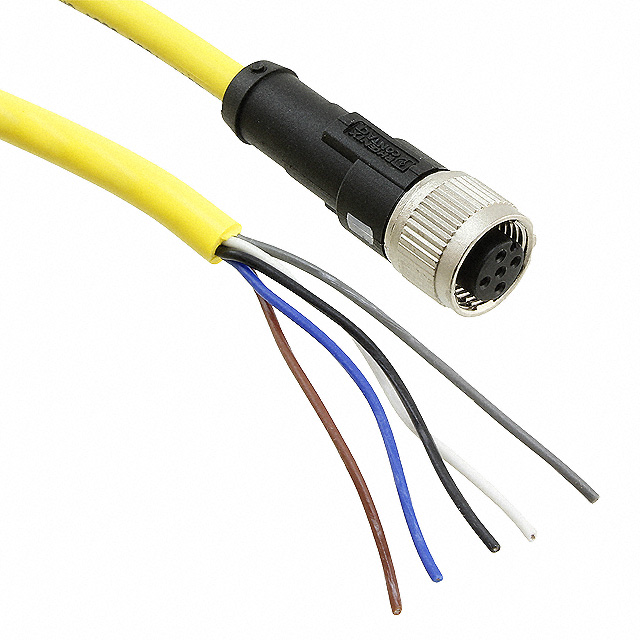

Sensor Cables / Actuator Cables SAC-5P- 5.0-542/ FS SCO BK
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1406168 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Yellow |
| Ingress Protection | IP65, IP68, IP67 |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Sensor Cables / Actuator Cables SAC-5P- 5.0-542/ FS SCO BK
| Part | 1st Connector Orientation | 1st Connector Type | 1st Connector Mounting Type | 1st Connector Number of Positions | 1st Connector Shell Size - Insert | Cable Material | Color | 2nd Connector Type | Ingress Protection | 1st Connector Gender | Assembly Configuration | Shielding | Usage | Cable Type | 1st Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1406168 | A | Plug | Free Hanging (In-Line) | 5 | M12 | Polyvinyl Chloride (PVC) | Yellow | Wire Leads | IP65, IP67, IP68 | Female Sockets | Standard | Unshielded | Industrial Environments | Round | All |
