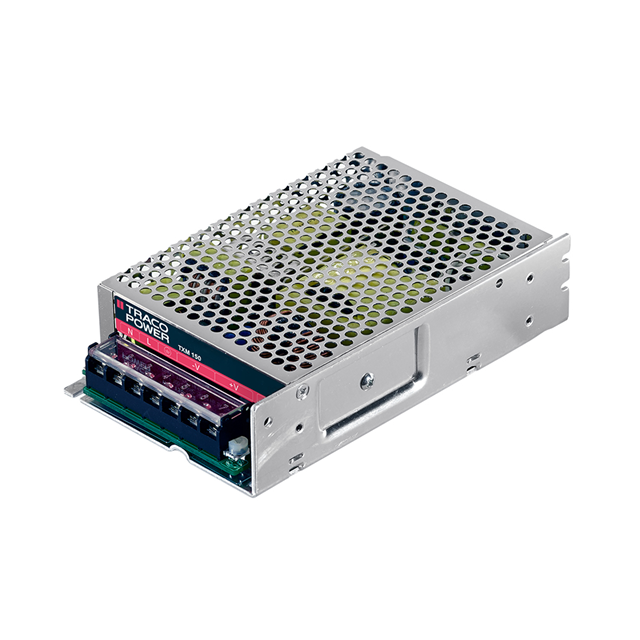

TXM 150-124

Active

Traco Power

AC/DC CONVERTER 24V 151W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 24V 151W

Technical Specifications

Parameters and characteristics for this part

Specification	TXM 150-124

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	6.3 A
Efficiency	87 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	151 W
Size / Dimension [x]	160 mm
Size / Dimension [x]	6.3 "
Size / Dimension [y]	3.87 "
Size / Dimension [y]	98.3 mm
Size / Dimension [z]	29 mm
Size / Dimension [z]	1.14 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Applications	Type	Voltage - Isolation	Current - Output 1	Approval Agency	Voltage - Output 1	Efficiency	Minimum Load Required	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Traco Power TXM 150-124	ITE (Commercial)	Enclosed	3000 V	6.3 A	CE cURus	24 V	87 %		3.87 "	98.3 mm	29 mm	160 mm	6.3 "	1.14 "	1	90 VAC 127 VDC	264 VAC 370 VDC	Adjustable Output Universal Input	151 W	60 °C	-20 °C	Chassis Mount
