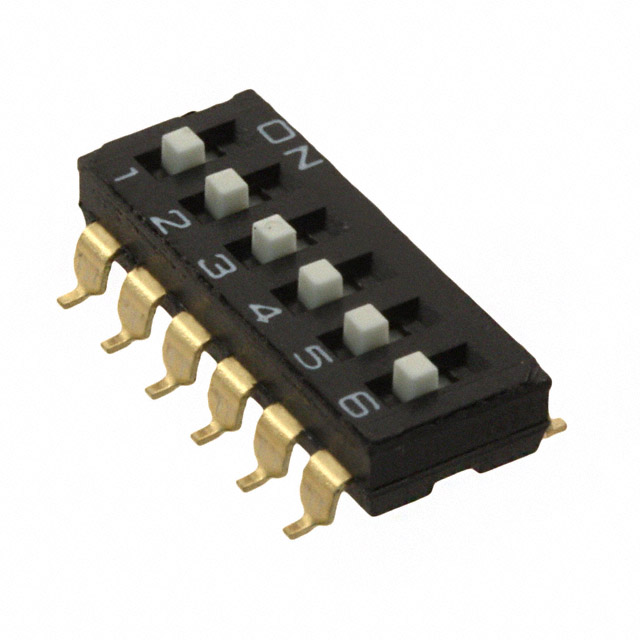

A6S-6104-H(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Termination Style	Voltage Rating	Current Rating (Amps)	Height Above Board	Height Above Board	Number of Positions	Mounting Type	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Electrical Life	Circuit	Washable	Contact Finish	Mechanical Life
Omron Electronics Inc-EMC Div A6S-6104H-R100(VNM)	Gull Wing	24 VDC	25 mA	4.4 mm	0.173 in	6	Surface Mount	Slide (Standard)	-20 C	70 °C	Raised	0.1 in	Full	2.54 mm	0.637 in	16.18 mm	1000 Cycles	SPST		Gold	1000 Cycles
Omron Electronics Inc-EMC Div A6S-6104-H(VNM)	Gull Wing	24 VDC	25 mA	4.4 mm	0.173 in	6	Surface Mount	Slide (Standard)	-20 C	70 °C	Raised	0.1 in	Full	2.54 mm	0.637 in	16.18 mm	1000 Cycles	SPST		Gold	1000 Cycles
