TMPA 2313SP-2R2MN-D
ActiveTAI-TECH Advanced Electronics Co., Ltd.

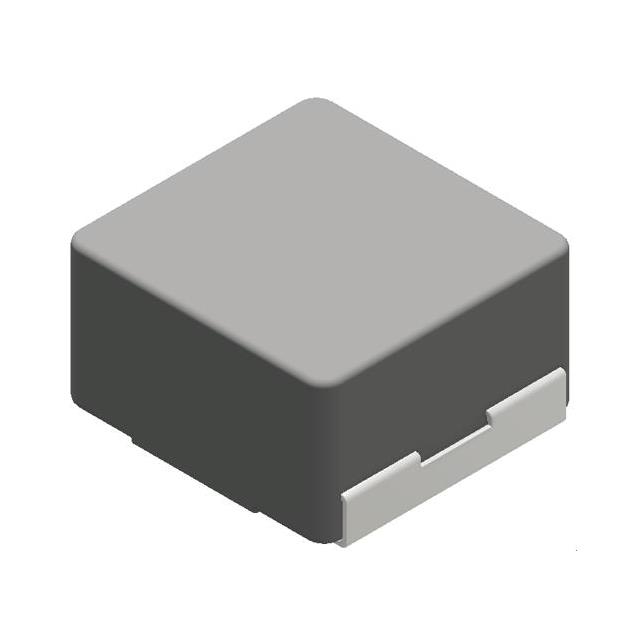

2.2 UH SHIELDED MOLDED INDUCTOR
TMPA 2313SP-2R2MN-D
ActiveTAI-TECH Advanced Electronics Co., Ltd.
2.2 UH SHIELDED MOLDED INDUCTOR
Description
General part information
TMPA 2313SP-2R2MN-D
2.2 µH Shielded Molded Inductor 52 A 1.25mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | TMPA 2313SP-2R2MN-D |
|---|---|
| Current - Saturation (Isat) | 43 A |
| Current Rating | 52 A |
| DC Resistance (DCR) (Max) | 1.25 mOhm |
| Height - Seated (Max) | 0.512 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.925 in |
| Size / Dimension Width | 0.866 in |
| Tolerance | 20 % |
| Type | Molded |
