0002091104

Active

Molex

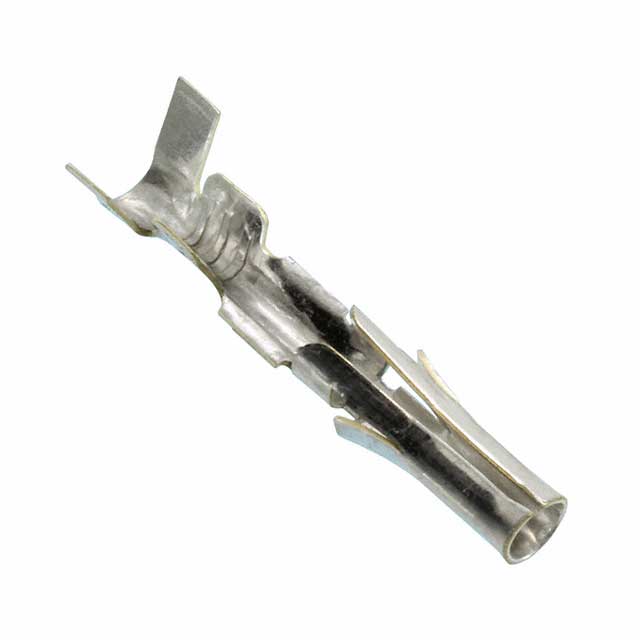

CONN SOCKET 14-20AWG CRIMP TIN

Search across all available documentation for this part.

Active

Molex

CONN SOCKET 14-20AWG CRIMP TIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Tin 14-20 AWG Crimp Power

Technical documentation and resources

Part	Contact Finish	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]
Molex 0002092171	Tin	Power	0.51 µm	20 µin	Crimp	Pin	14 AWG	18 AWG
Molex 0002095133	Gold		1.27 µm	50 µin	Crimp	Socket	17.5 AWG	22 AWG
Molex 0002095147	Gold	Power	0.38 µm	15 µin	Crimp	Socket	24 AWG	30 AWG
Molex 0002091115	Tin		0.51 µm	20 µin	Crimp	Socket	17.5 AWG	22 AWG
Molex 0002091143
Molex 0002091139	Tin	Power	0.51 µm	20 µin	Crimp	Socket	22 AWG	24 AWG
Molex 0002096100	Gold		0.38 µm	15 µin	Crimp	Pin	14 AWG	20 AWG
Molex 0002092111	Tin	Power	0.51 µm	20 µin	Crimp	Pin	14 AWG	18 AWG
Molex 0002091116
Molex 0002095169	Gold	Power	0.76 Ám	30 Áin	Crimp	Socket	14 AWG	20 AWG
