2C15DL
ActiveAltech Corporation

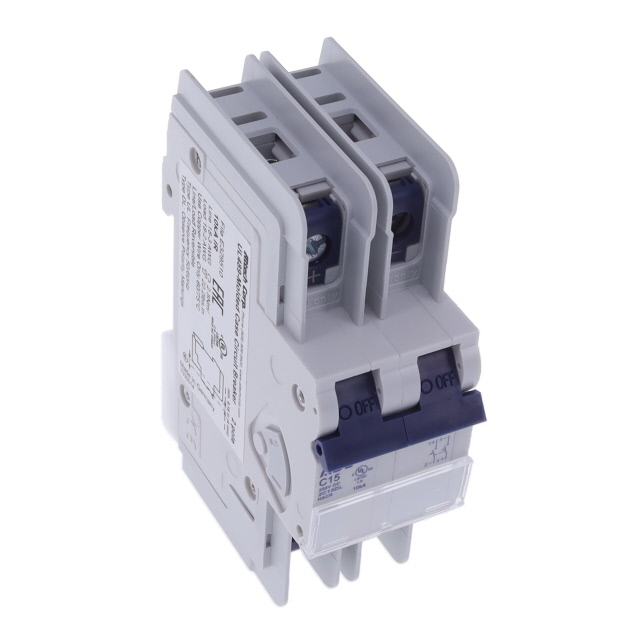

2C15DL 15A CIRCUIT BREAKER C CHA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2C15DL
ActiveAltech Corporation
2C15DL 15A CIRCUIT BREAKER C CHA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2C15DL | 2C15 Series |
|---|---|---|
| Actuator Type | Lever | Lever |
| Approval Agency | UL489, CE, cULus | UL489, CE, cULus, UL1077, cURus |
| Breaker Type | Thermal Magnetic | Thermal Magnetic |
| Current Rating (Amps) | 15 A | 15 A |
| Illumination | None | None |
| Mounting Type | DIN Rail | DIN Rail |
| Number of Poles | 2 | 2 |
| Voltage Rating - AC | - | 480 V |
| Voltage Rating - DC | 250 V | 80 - 250 V |
2C15 Series
2C15UM 15A CIRCUIT BREAKER C CHA
| Part | Actuator Type | Voltage Rating - DC | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Illumination | Breaker Type | Number of Poles | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 2C15UM | Lever | 80 V | 480 V | DIN Rail | 15 A | None | Thermal Magnetic | 2 | |
Altech Corporation 2C15UL | Lever | 480 V | DIN Rail | 15 A | None | Thermal Magnetic | 2 | CE, cULus, UL489 | |
Altech Corporation 2C15UR | Lever | 480 V | DIN Rail | 15 A | None | Thermal Magnetic | 2 | CE, cURus, UL1077 | |
Altech Corporation 2C15DL | Lever | 250 V | DIN Rail | 15 A | None | Thermal Magnetic | 2 | CE, cULus, UL489 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 72.80 | |
| 10 | $ 65.52 | |||
| 100 | $ 50.96 | |||
Description
General part information
2C15 Series
Circuit Breaker Thermal Magnetic 15A AC 250 V DC Lever DIN Rail
